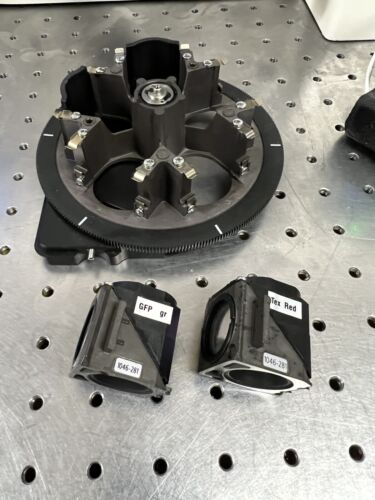

2 Fluorescence Cubes Installed
FITC EX 470/40nm DM 510nm EM 540/50nm
Rhodamine EX 546/12nm DM 580nm EM 590nm
Universal Broadband High Intensity LED 400nm-600nm Excitation Range 3000 lumen rated

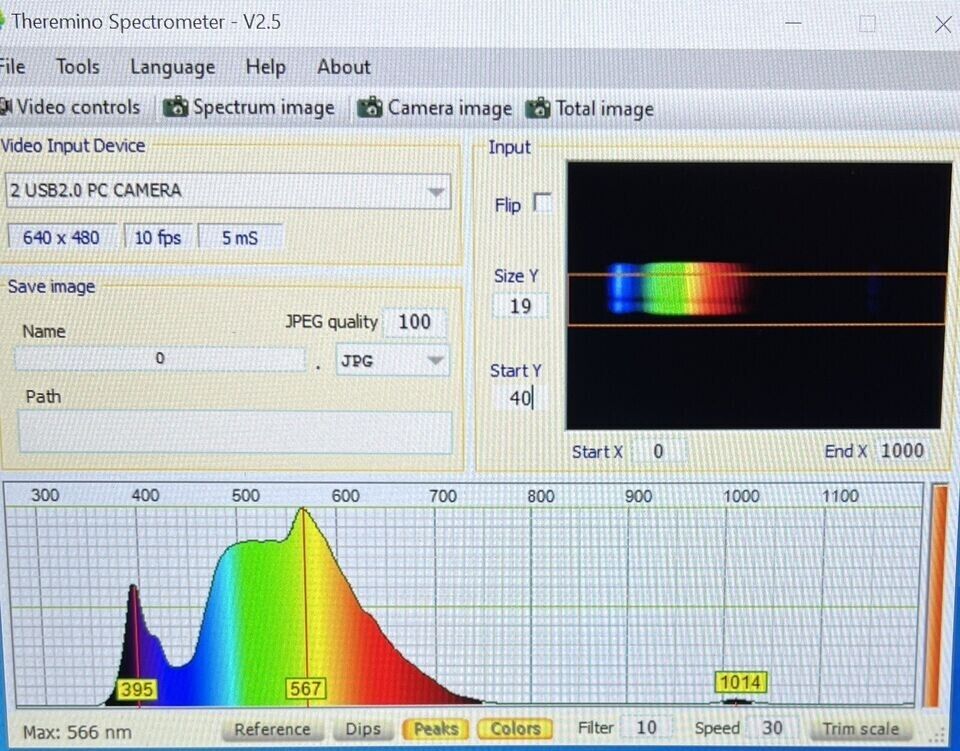

Spectra in images is the LED excitatiohn spectra
Direct Coupled Broadband LED system uses original Nikon Lamp House, alignment, and Collimating optics
Low Cost Broadband System that doesn't require Fiber optics,No Fiber optic adapters, No Mercury Lamps, No expensive metal Halide Lamps .No ND filters needed. No switching between single frequency LEDs
Digital LED Power supply with Power, Current, and voltage limiting; USB , Blue Tooth, and Manual control

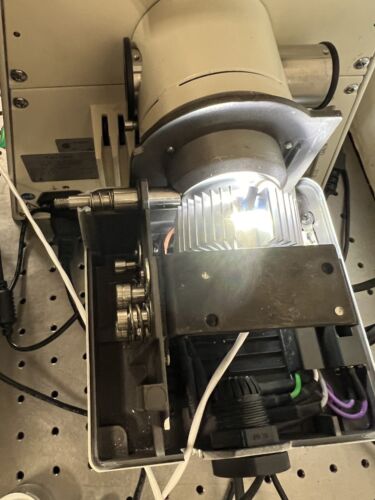

100W HBO Lamphouse with LED Fixture mounted
100W Tungsten Halogen Lamp House
Flat top with XY terasaki insert clips
Objectives :
10X achroplan PH1
20x LD achroplan LWD PH1
40x LD achroplan PH2
Photo / Port Splits:
Left 80% or 20%Left or Head 100%

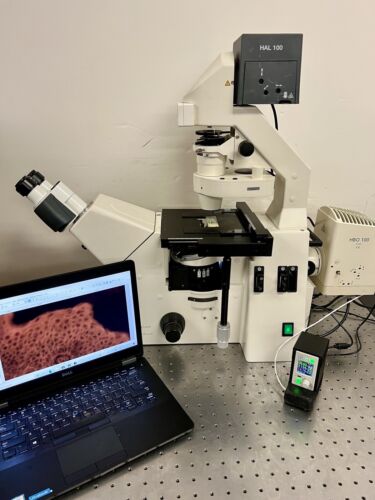

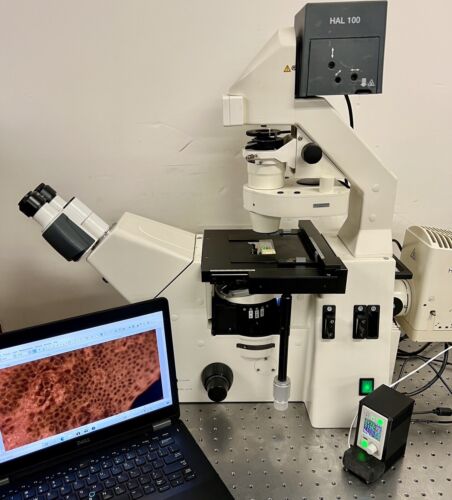

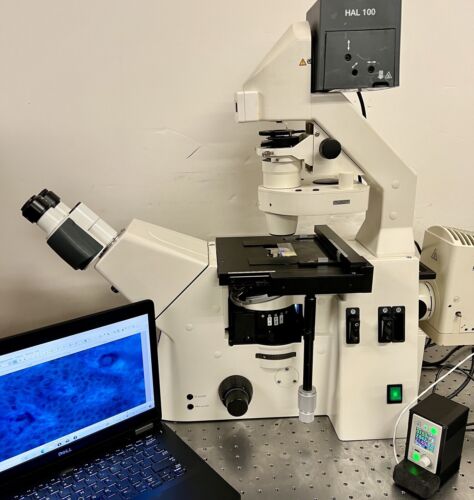

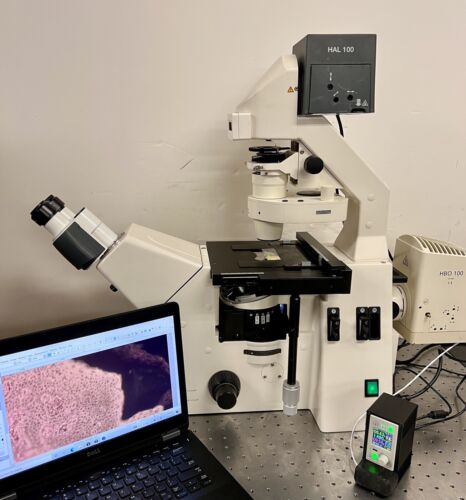

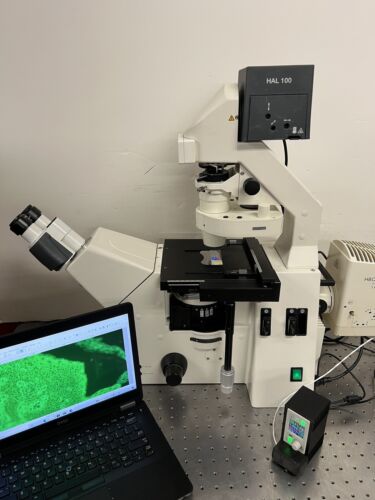

Laptop Not Included (Shown in ad for demonstration purpose)
Sony CMOS 5MP Camera and Drivers
Full Manual
Full Guarantee
Parts and Service available

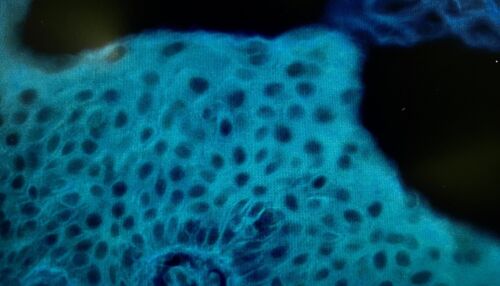

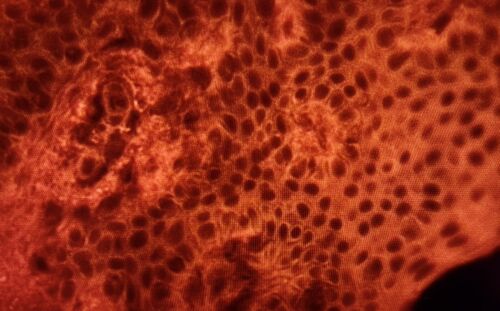

Images are real Time Screen shots of Skin Cells 100x,200x,400x , FITC, and TRITC
