Zeiss AXIOTECH 100 HD Nomarski DIC BF/DF DRO Metallurgical Microscope
Zeiss AXIOTECH 100 HD Nomarski DIC BF/DF DRO Metallurgical Microscope

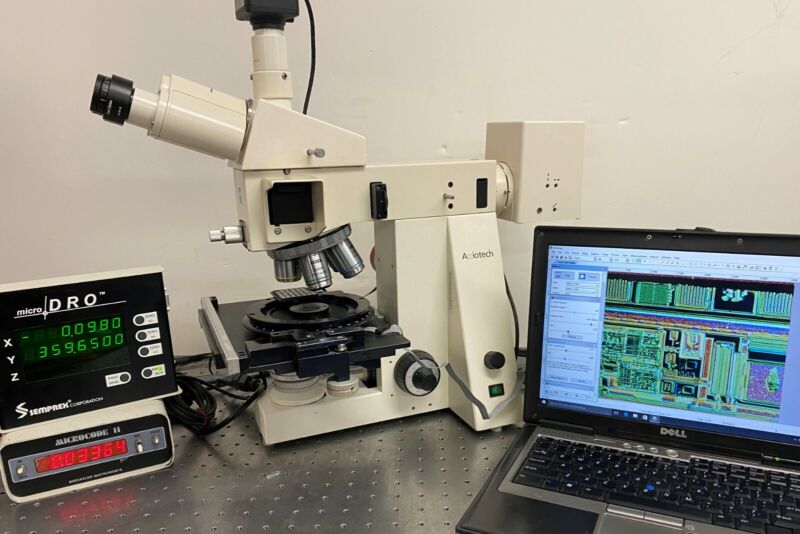

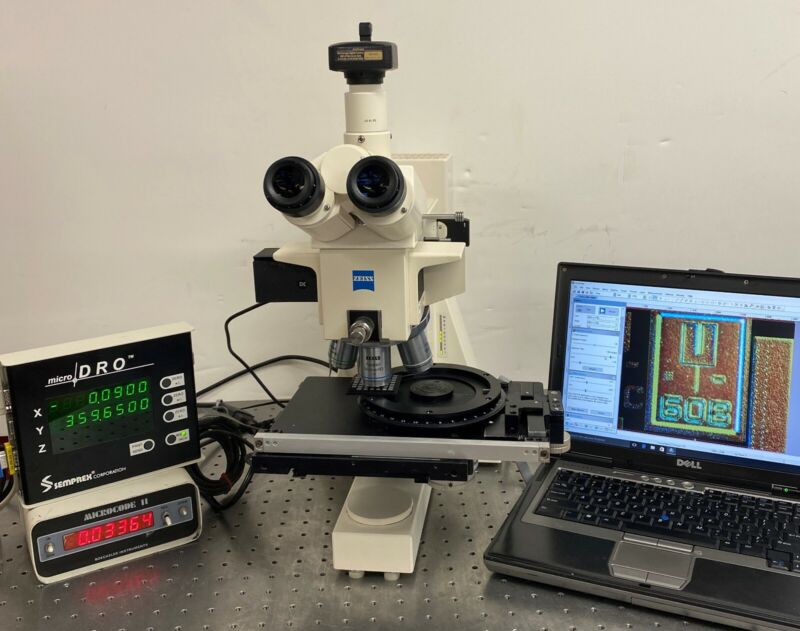

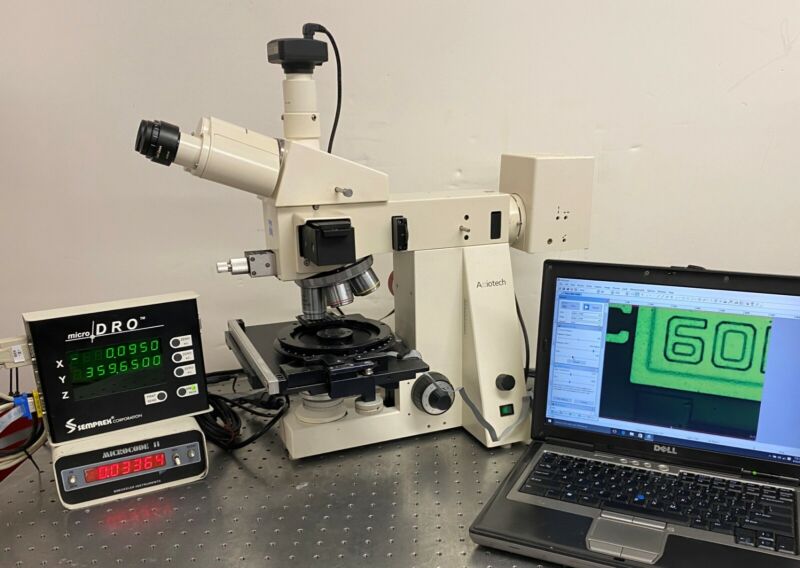

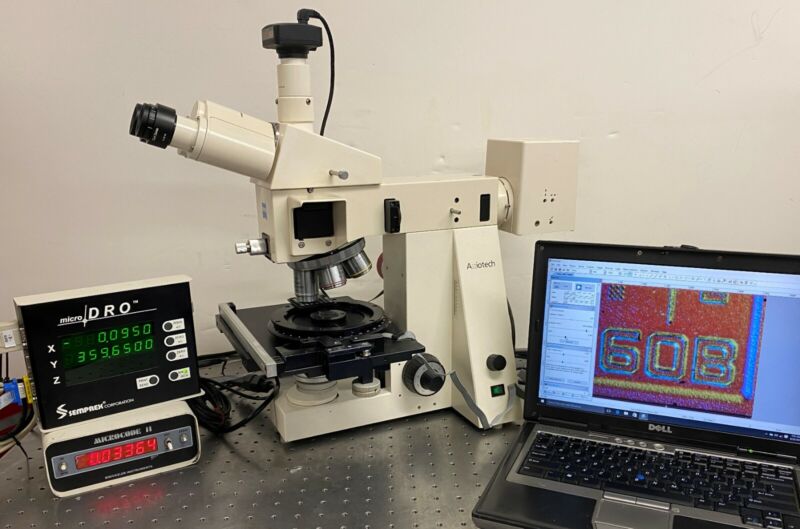

The AxioTech M100 is equipped with trinocular observation head. W-Pl 10X 23 Eyepieces C mount camera adapter. 10 MP CMOS USB 2.0 camera with drivers and metrology software..

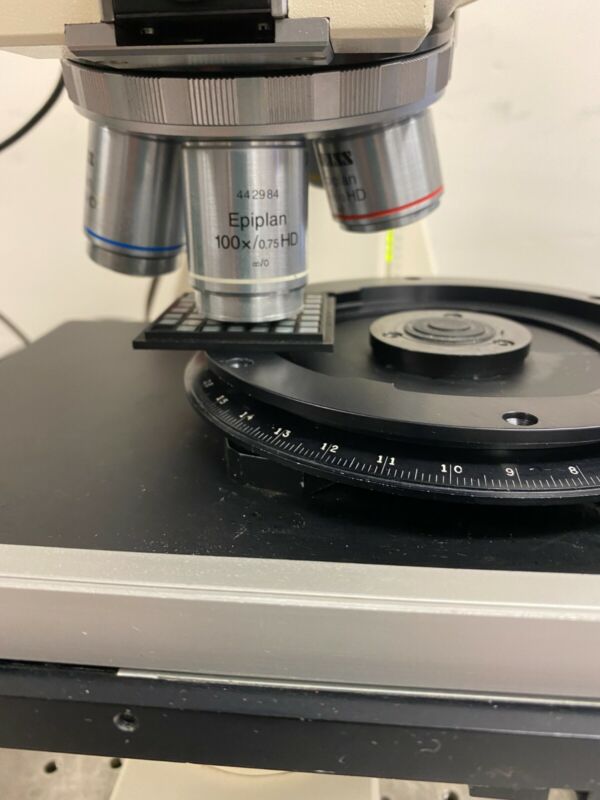

Objectives are 5X,10X,20X,50X,100X EPI Plan HD Infinity strain free High Definition BF/DF DIC strain free objectives.
High Definition DIC

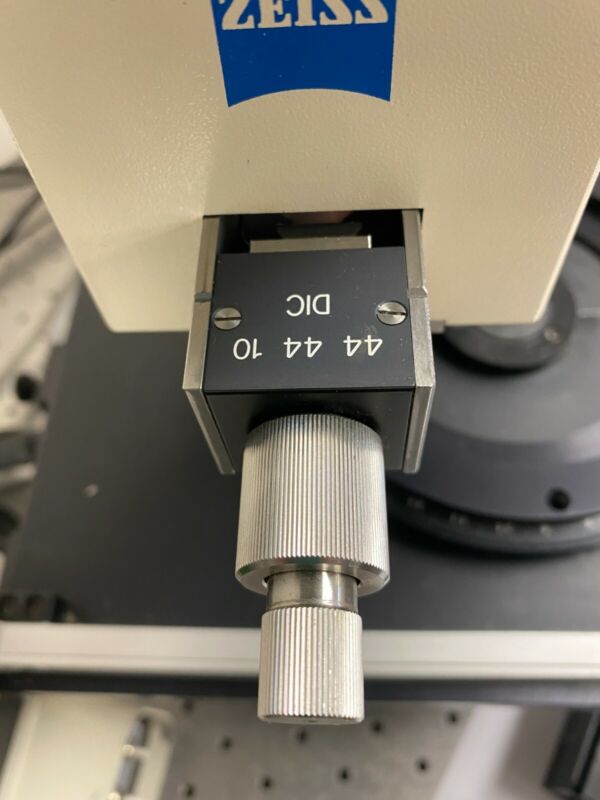

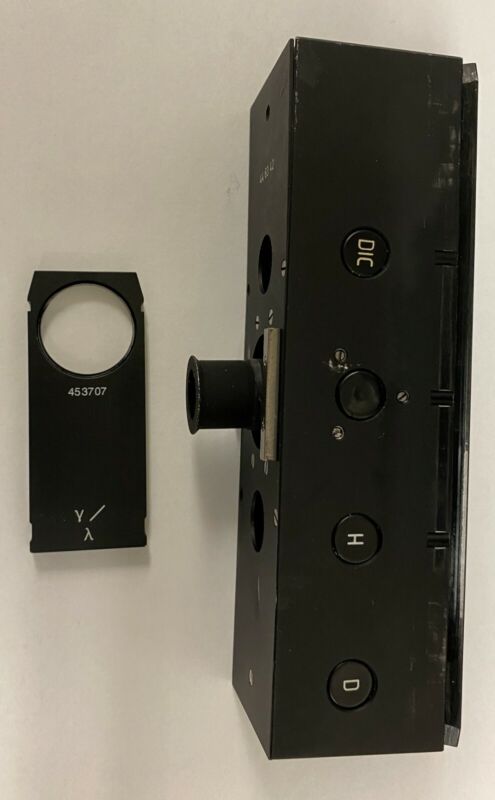

Zeiss 44 44 10 Tunable Order DIC slider with Analyzer slider. BF,DF,DIC 3 position mode slider. with polarizer
100W Tungsten halogen lamp house with built in power supply..

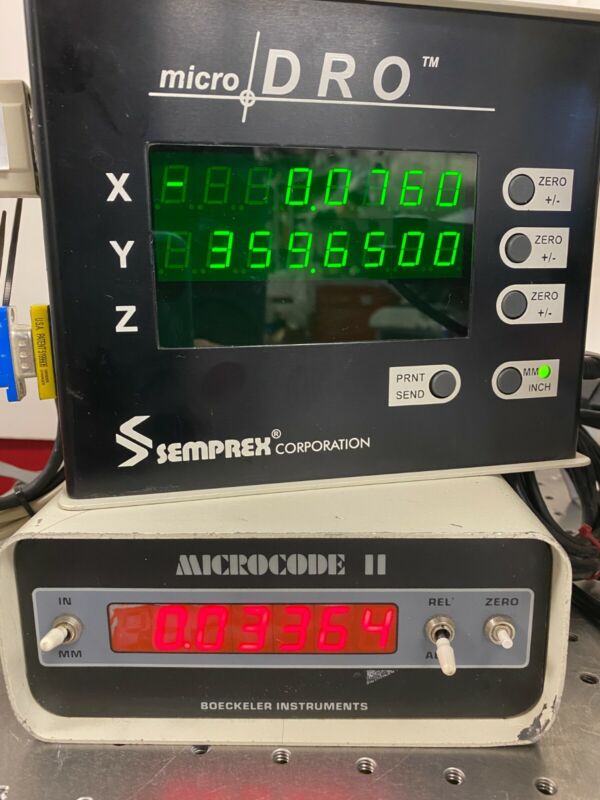

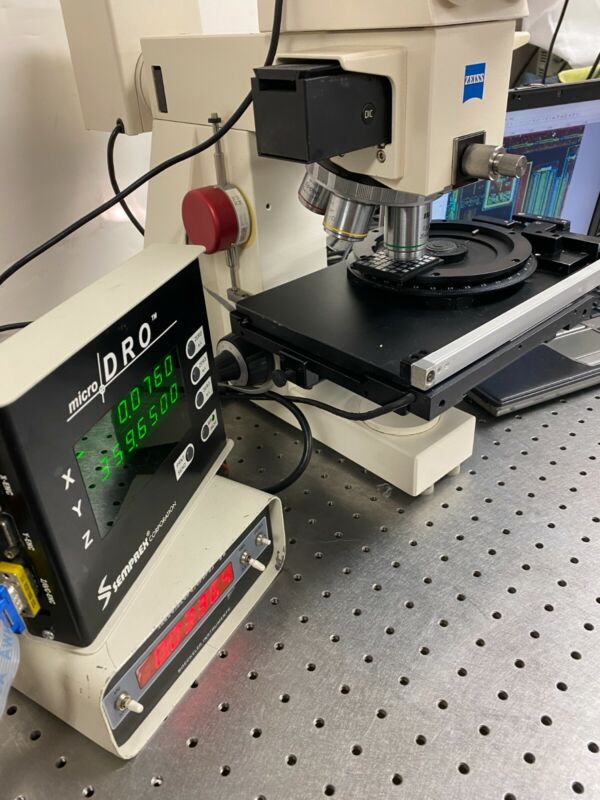

Semprex Micro DRO X Theta readout w/power supply. currently setup for X and 360 degree Theta readout .(stage can be modified ) 1 micron resolution.
Boeckeler Z axis Digital encoder and Boeckeler Digital readout (encoder mounted on side of frame)
Includes Amscope MA1000 10 MP USB 2 Camera system, software and drivers
Laptop not included. (Laptop is for performance display)
DIC has the highest Contrast Ratio.
DIC orders zero order(High contrast gray scale) DIC First order (primary colors), and order 2 (complex colors)

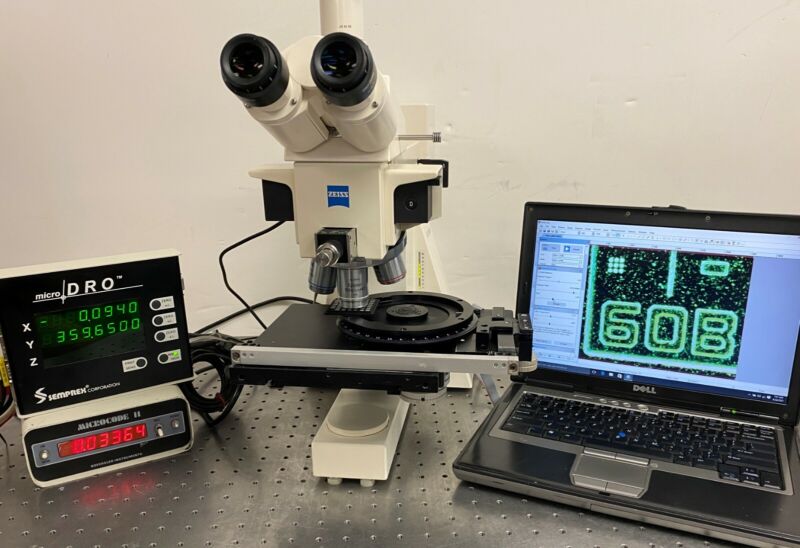

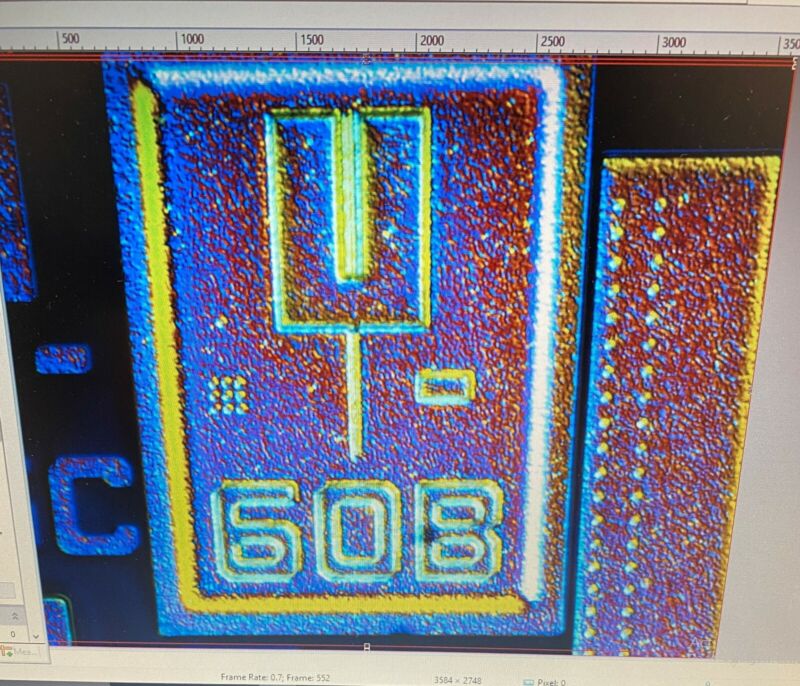

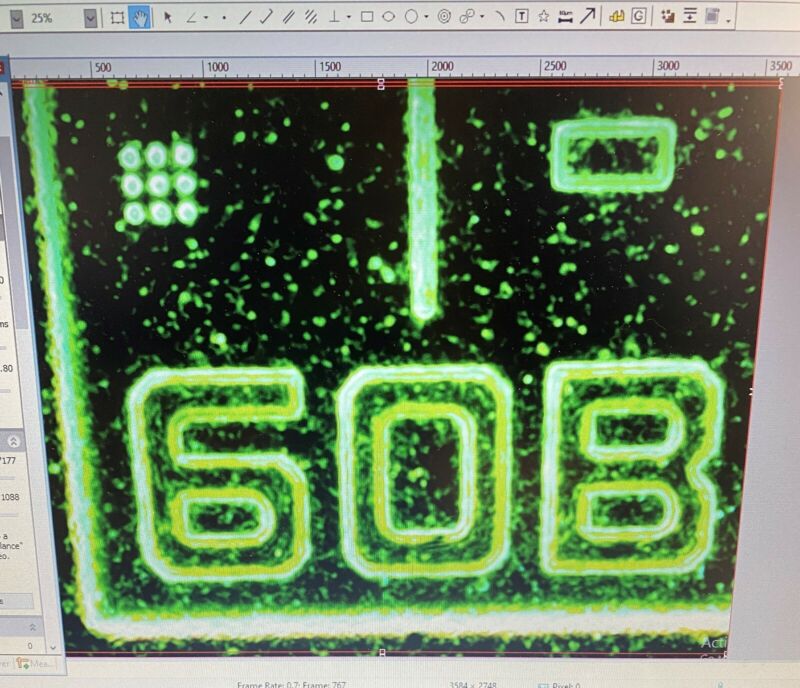

Screen shot is actual Real time imaging of a AMD memory chip in DIC (2nd order ) mode.
