Zeiss Axio Imager M1 Trinoc Marzhauser stage EK14 Microscope auto Pathology
Zeiss Axio Imager M1 Trinoc Marzhauser stage EK14 Microscope auto Pathology

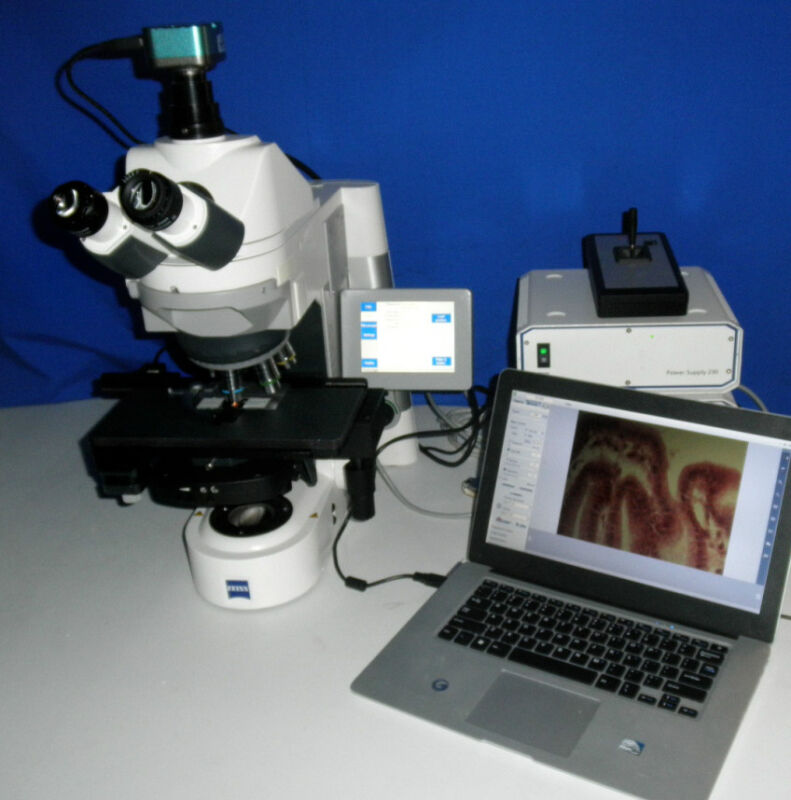

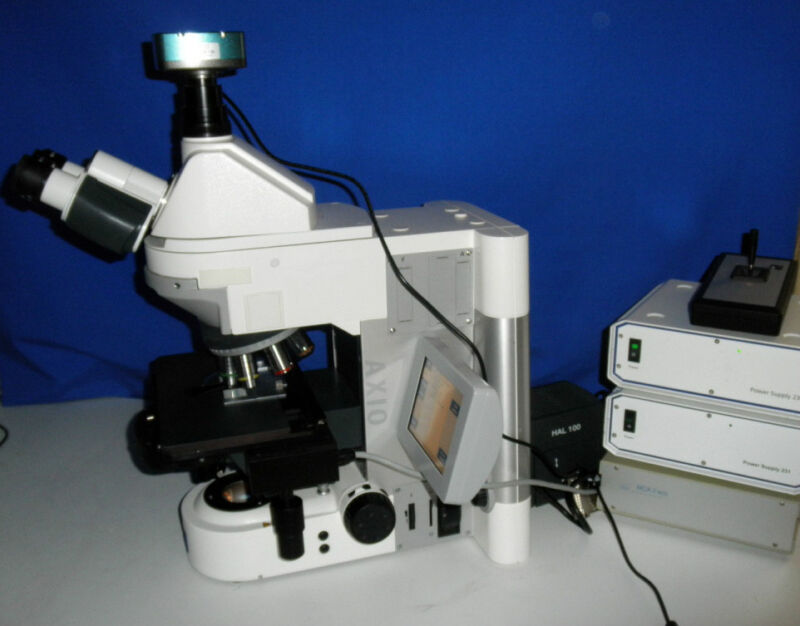

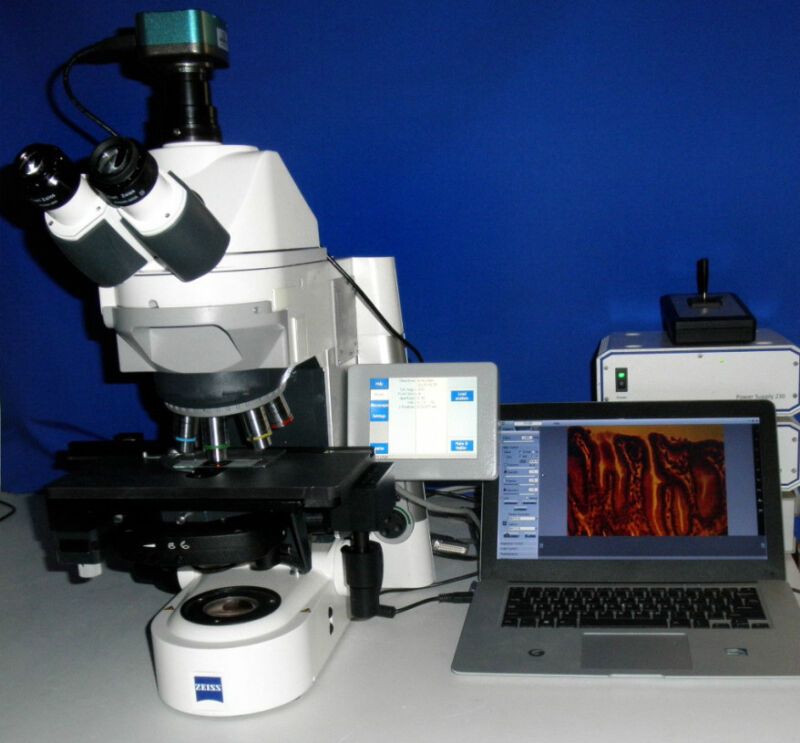

Zeiss Axio Imager M1 Automated cytology/ pathology/ Research microscope system. 25nm Z axis readout.

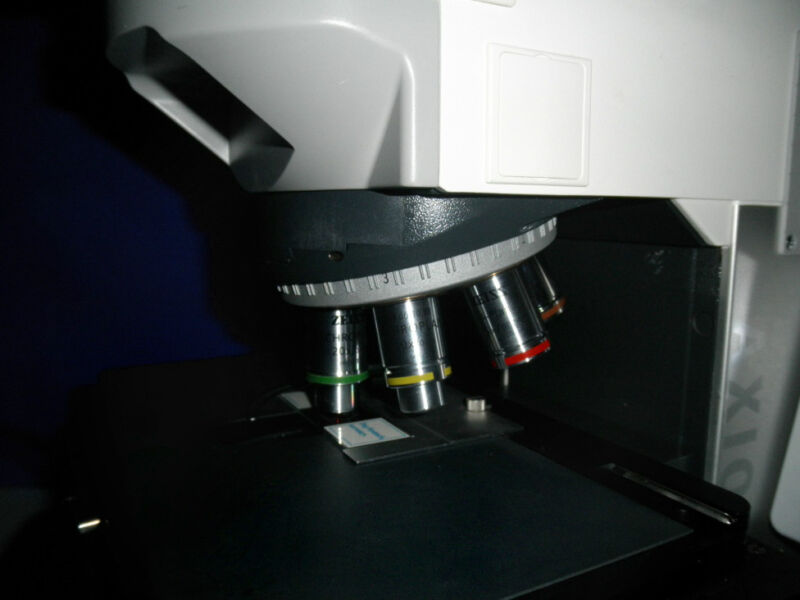

Motorized Condenser, Motorized turret, Motorized auto focus TFT touch screen control. Trinocular wide field head , Zeiss Manuals. Objectives are : Zeiss A Plan 5x, Aplan 10x, Aplan 20x, Aplan 40X, Aplan 100X Oil.
Excellent condition. System currently not set up for fluorescence.(can be upgraded) W-PI 10x 23 Eyepieces. 25nm Z drive option installed.

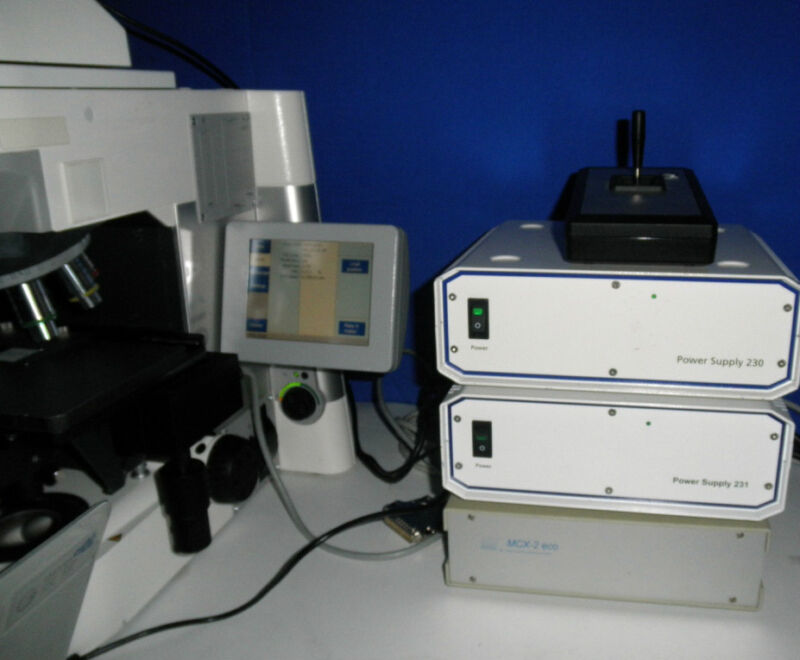

Motorized Marzhauser EK14 xy stage included with ITK / Marzhauser MCX-2 ECO Controller
This system supplies working hardware only. Service and support of the software and interfacing is extra.
This is a working system in excellent condition .
System Controllable through NIH Micro-Manager software
Z focus memory tested Passed
EK14 stage position memory tested Passed
TFT screen functions tested Passed
Originally set up as Ventana auto pathology system
30 day guarantee electronics, Optics,and mechanical components
Laptop is for display only.Laptop not included camera is for performance display.
10 MP Camera shown is not included.
Joystick in picture is not included. Joystick is available from Marzhauser
Parts and service available on zeiss axio
