Olympus IMT-2 Nomarski DIC Phase Contrast Fluorescence Inverted Microscope + Cam

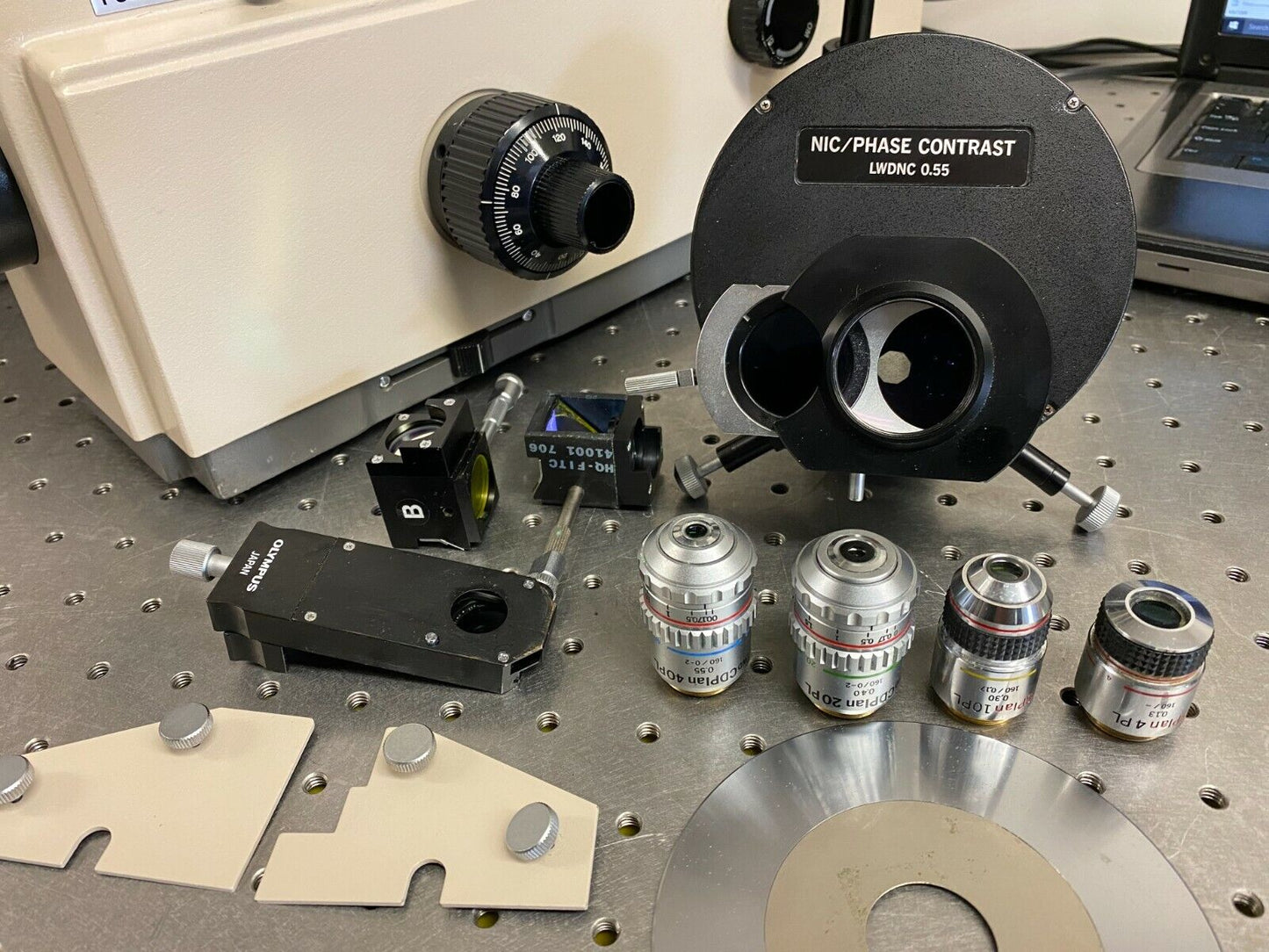

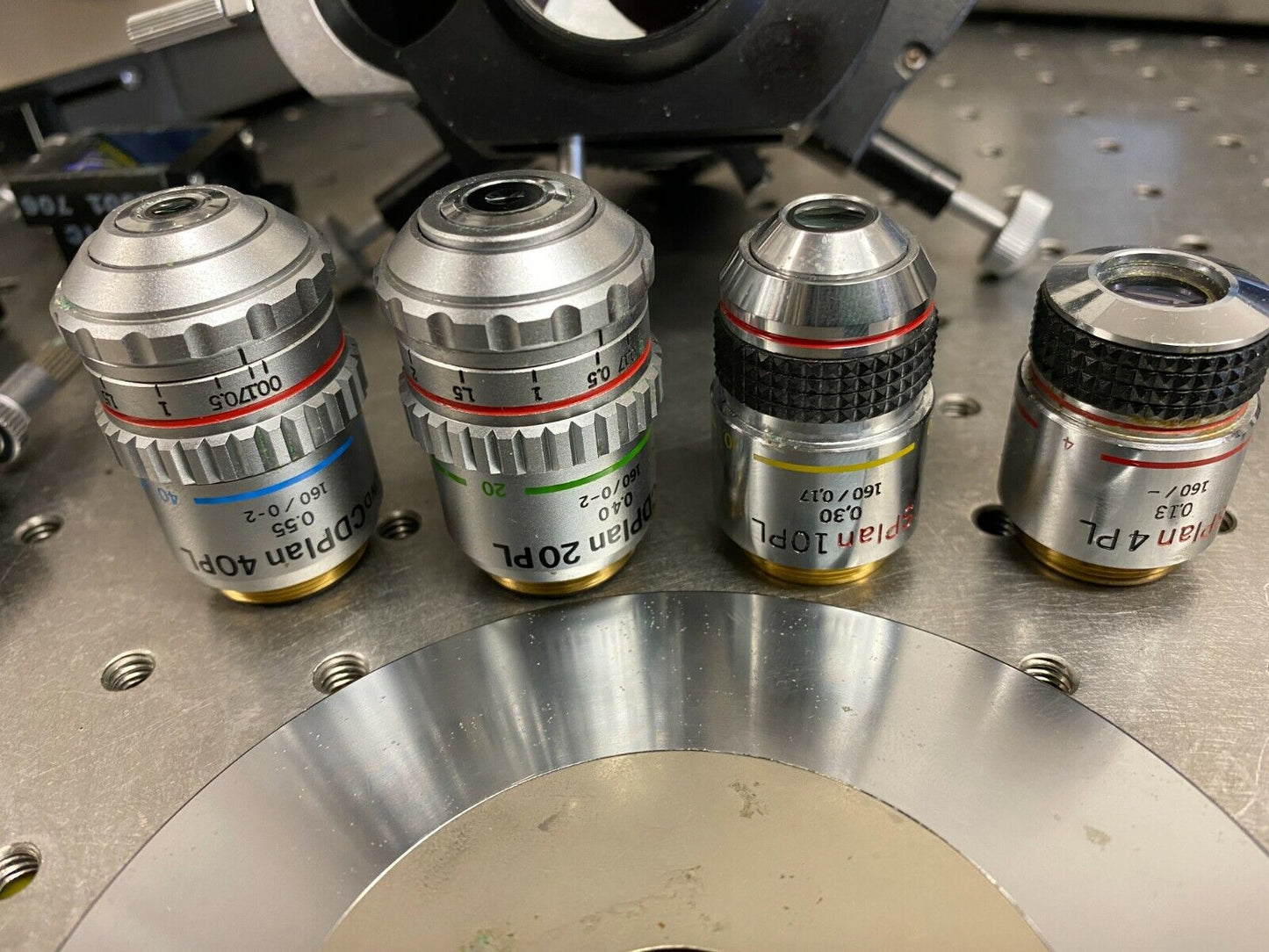

This is equipped with 20X CDPlan (Iris) LWD PL and 40X LCPlanFl LWD pl (iris)objectives. Also includes 4X S Plan P and 10X SPlan Phase objectives. Internal Magnification changer allows for magnifications of:40X,100X 200x,300x,400x ,and 600X in LWD Fluorescence and phase contrast mode.(Has Internal 1.5X Mag changer. System is offered with 0.3 N.A. condenser, long working distance. This shares capability and objectives of current Olympus IX,IX2 series. 160mm Objective TL. (same as the current IX70/71)

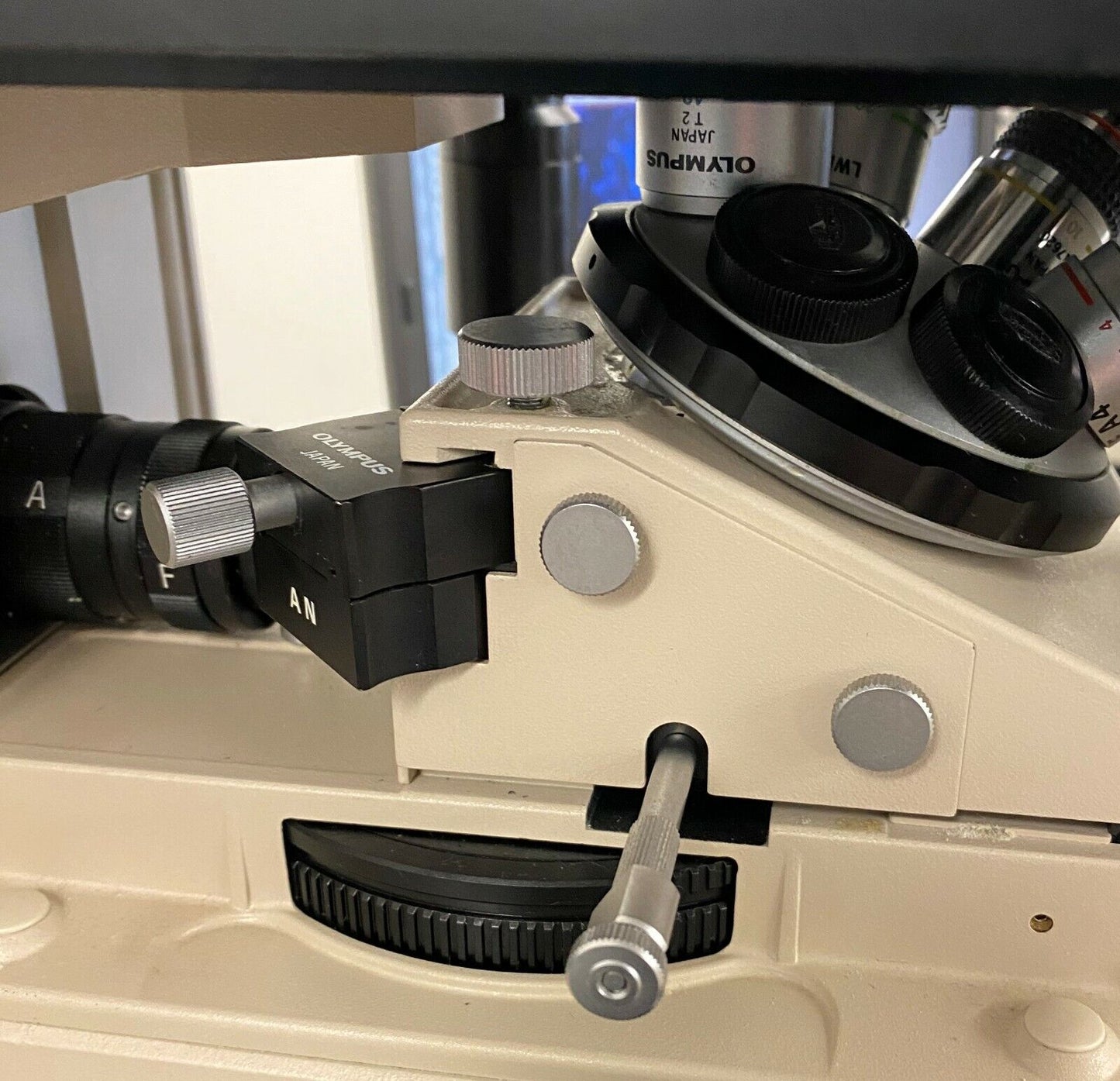

Nomarski DIC tunable prism

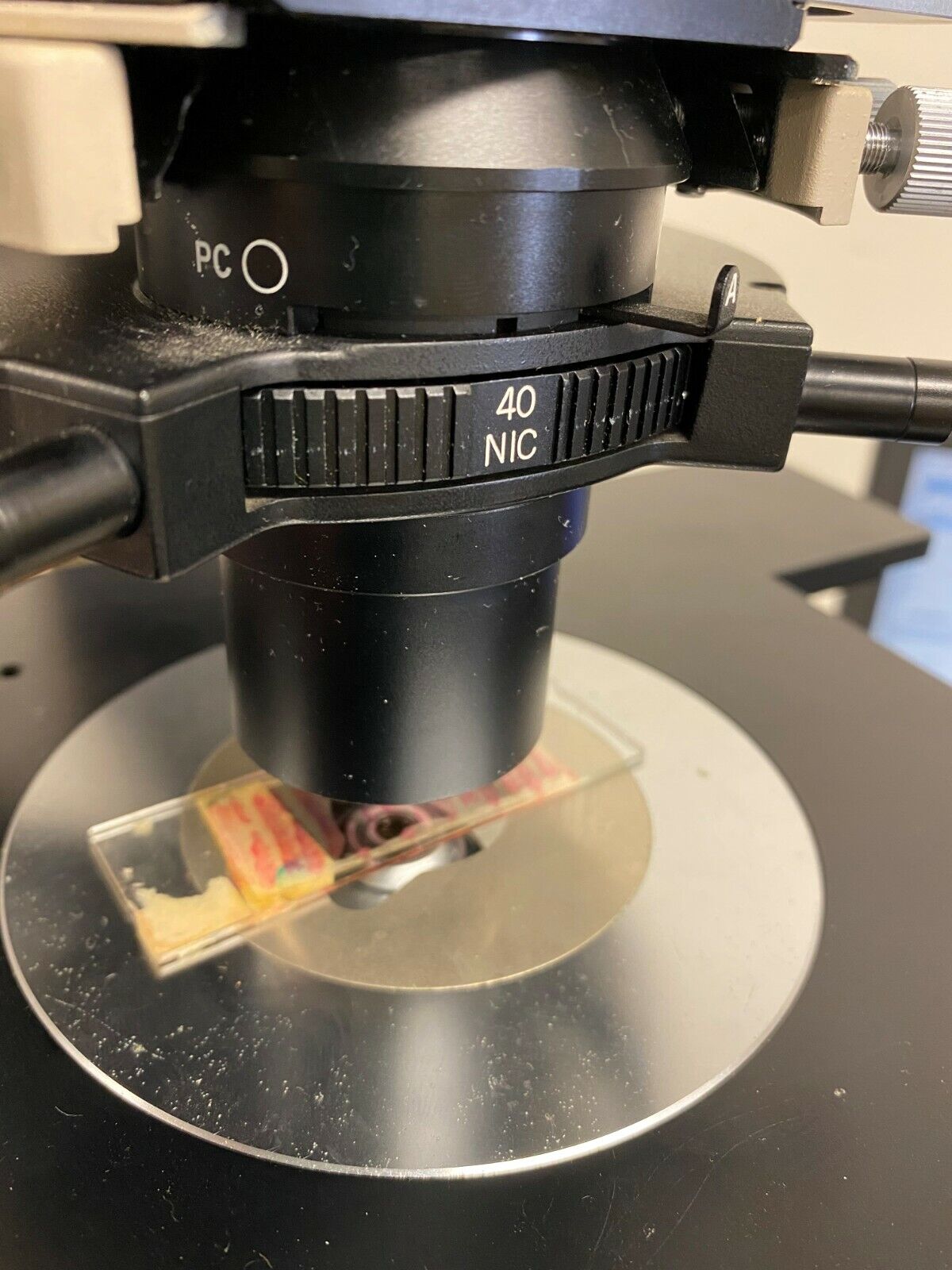

0.55 N.A. NIC Condenser configuration DIC Nomarski with 10x,20x,40x Nomarski prisms installed, and Phase Annuli
Trinocular photo head with 10X 20 L eyepieces. Front and side photo ports. Frame is equipped with 2 photo ports, Magnification changer 1.5X , Phase alignment scope., 50W Tungsten power supply, 6 place turret. Phase contrast condenser.
5 MP Color USB 2 Camera System with software ,WIN drivers, photo adapter

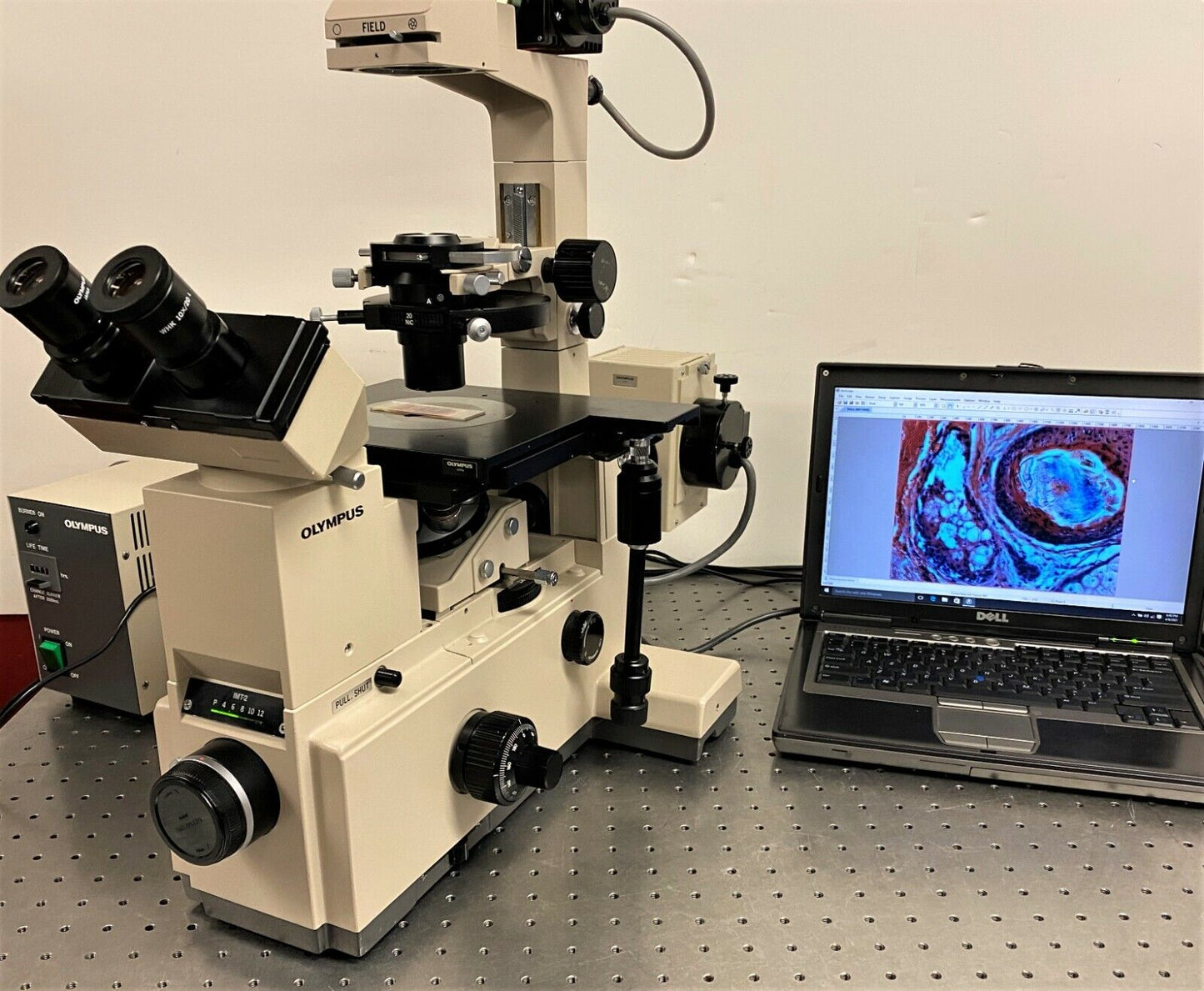

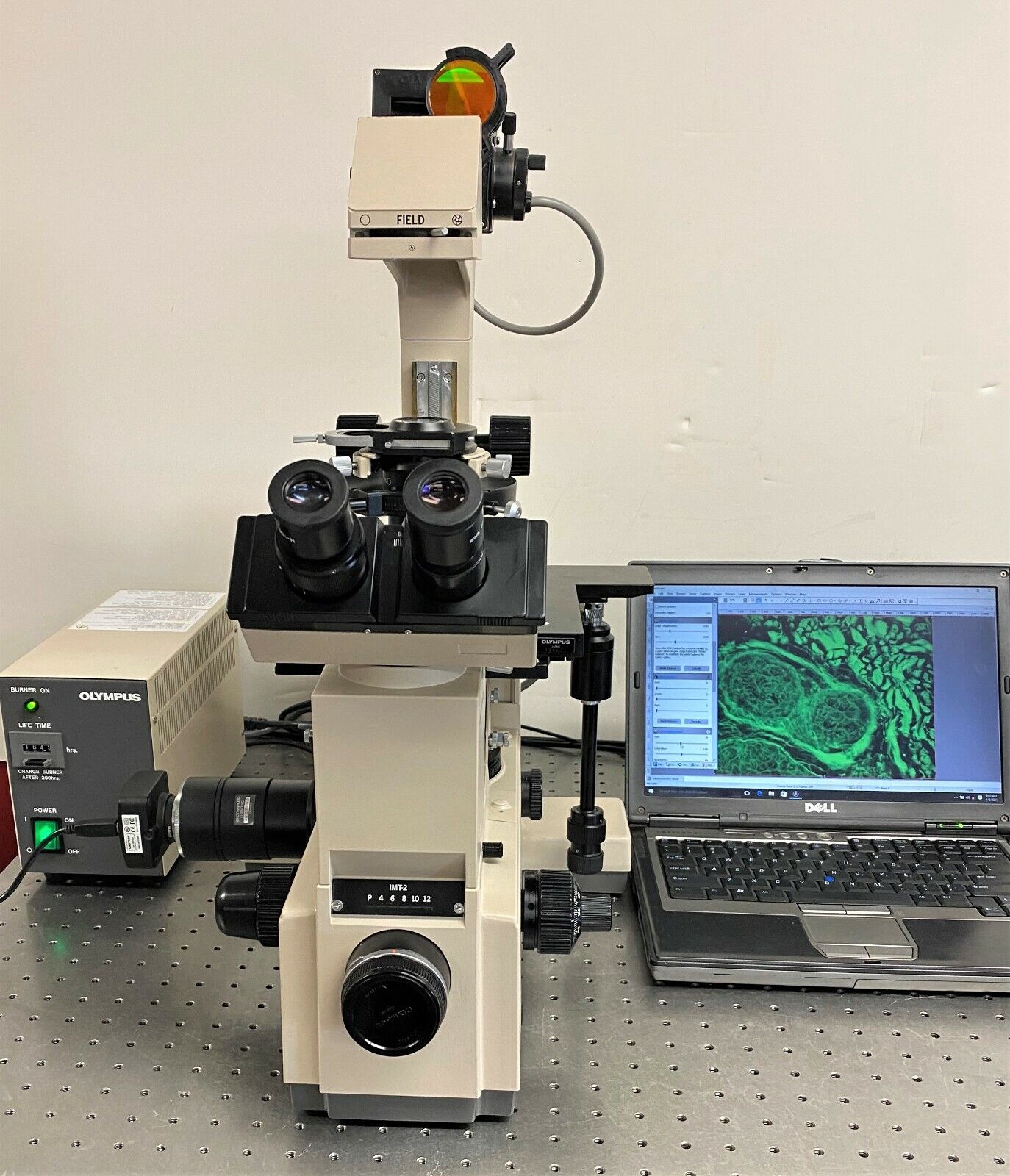

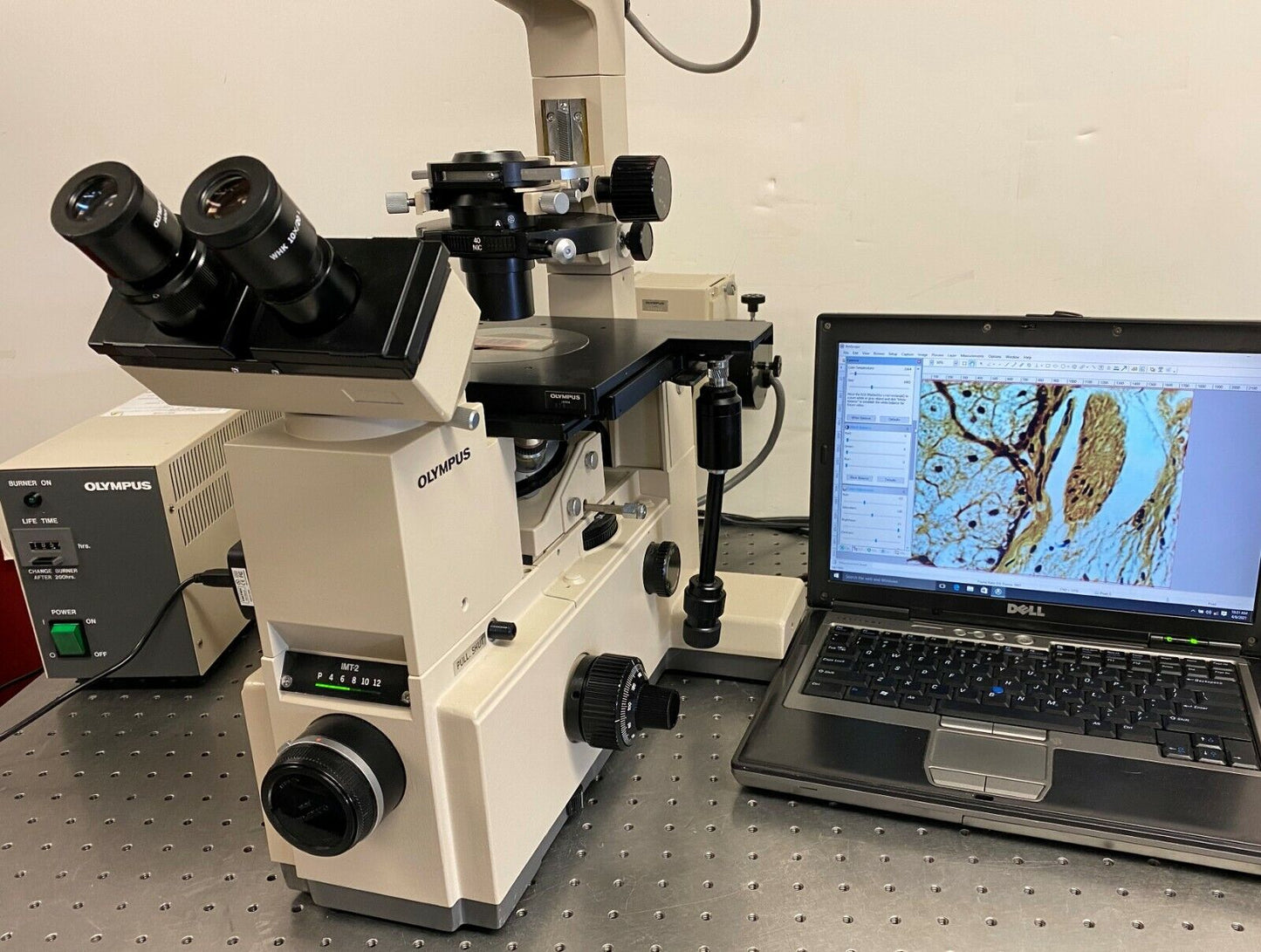

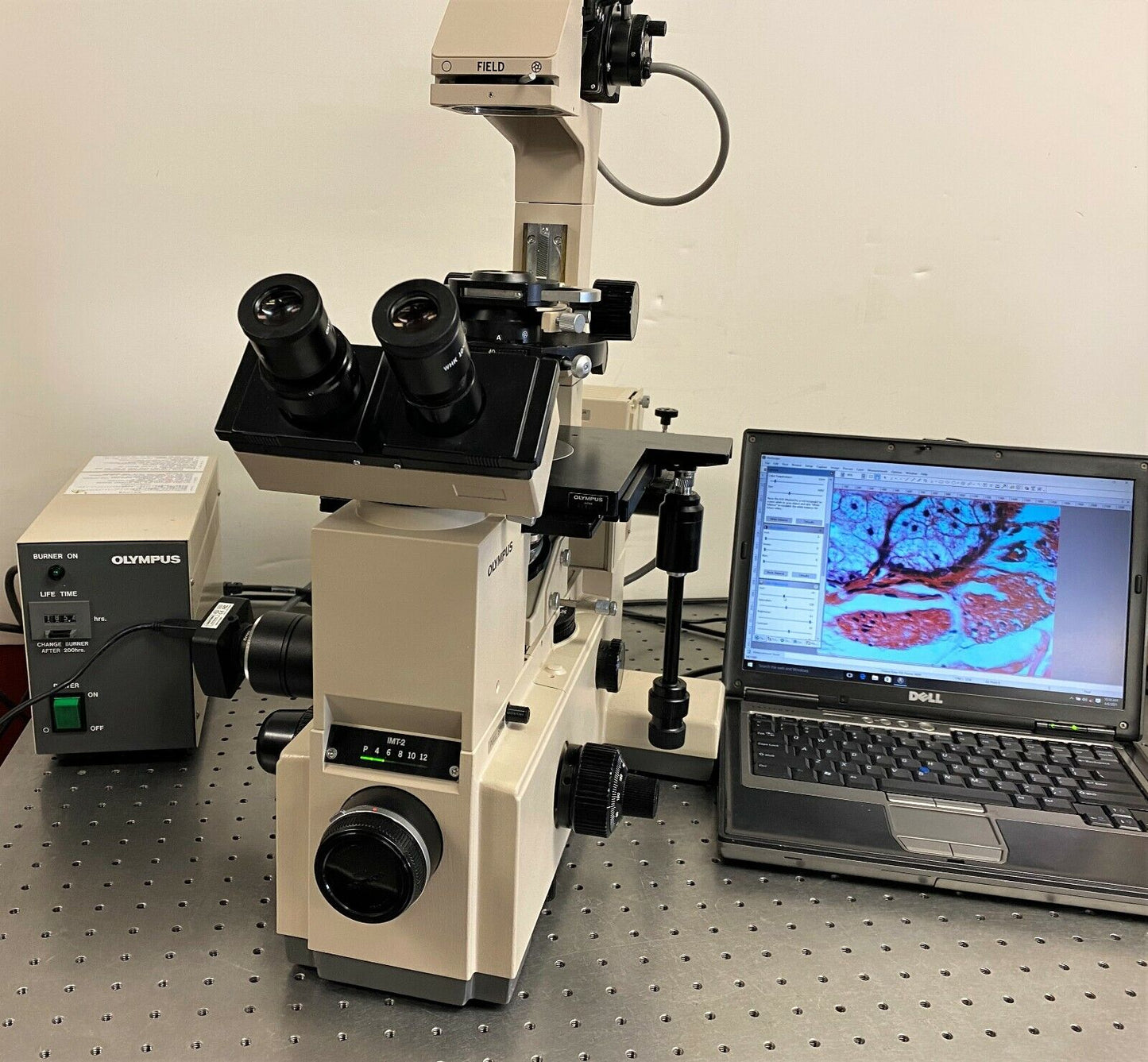

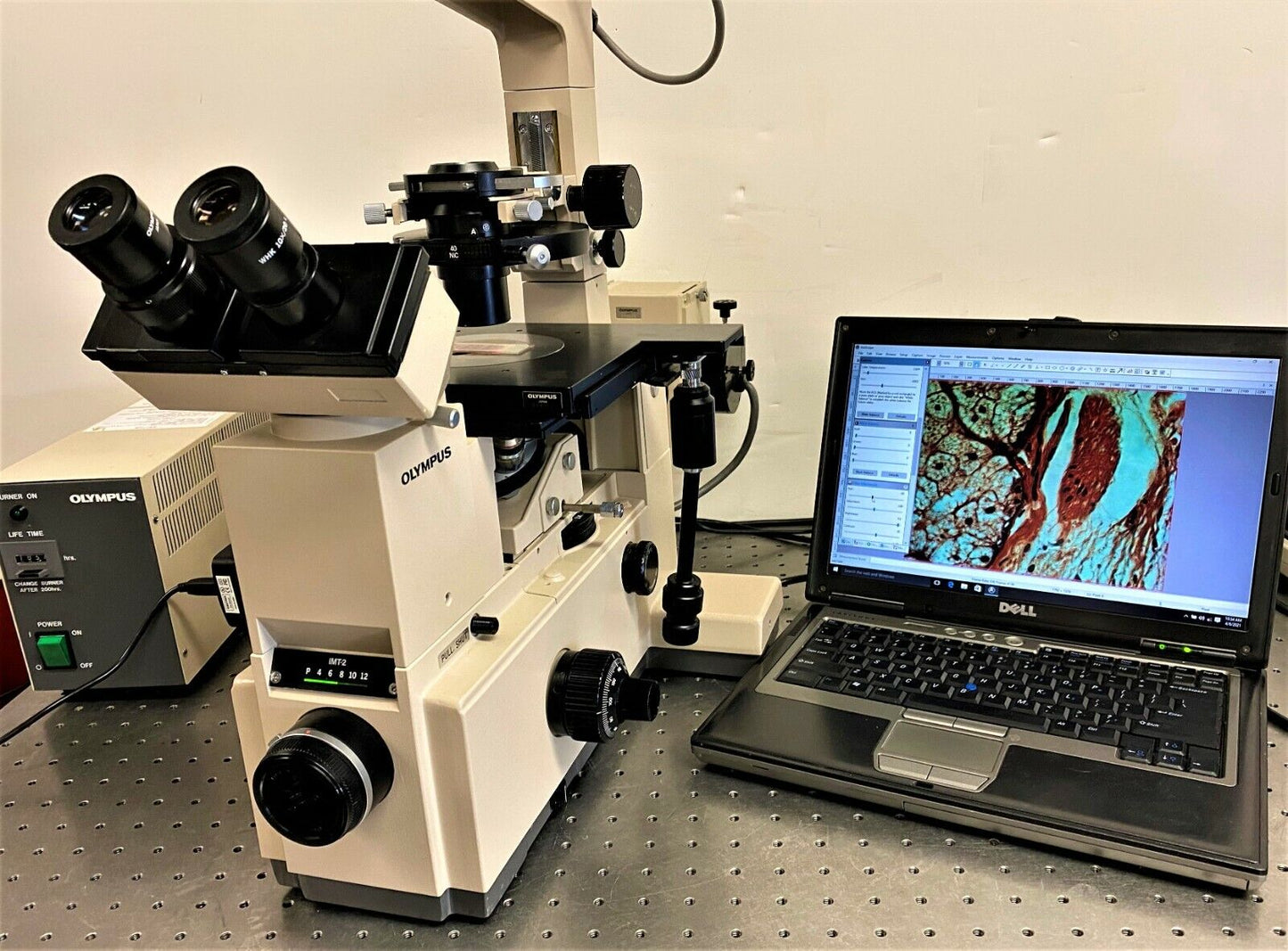

Laptop not included (Shown in ad for demonstration purpose)
Full IMT-2 Manual
Fluorescence system is a 100W HBO or XBO arc lamp with power supply. Cube currently installed is B and G Fluorescence cubes. Other cubes available through Chroma or Omega .. Manual included. Images are actual captures demonstrating performance of this microscope in DIC ,fluorescence mode. System can be modified per end user specification
Complete Parts and service available on all Olympus IMT-2 versions
Fully refurbished. with Guarantee (clean optics) ,(Good electronics) (No sticky grease ) All movements are smooth
This is the Complete configured Fully tested IMT-2 with all accessories that were available
Great Value (Full feature Research Inverted at the price of a Clinical Inverted)
The IMT-2 shares the same optical System as the IX70,IX71,IX81 inverted microscopes
It is open architecture, Easily optimized to specific applications
Can be used for Live Cell tracking, In Vitro Fertilization, Flow cell imaging.
Differs from IX series by Fluorescence filter size and eyepiece size.(same 160 mm TL infinity system)
Newer Olympus LC Plan FL series objectives can be used on this microscope (DIN standard LWD 160mm T.L. Objectives)
Infinity objectives will work on this microscope

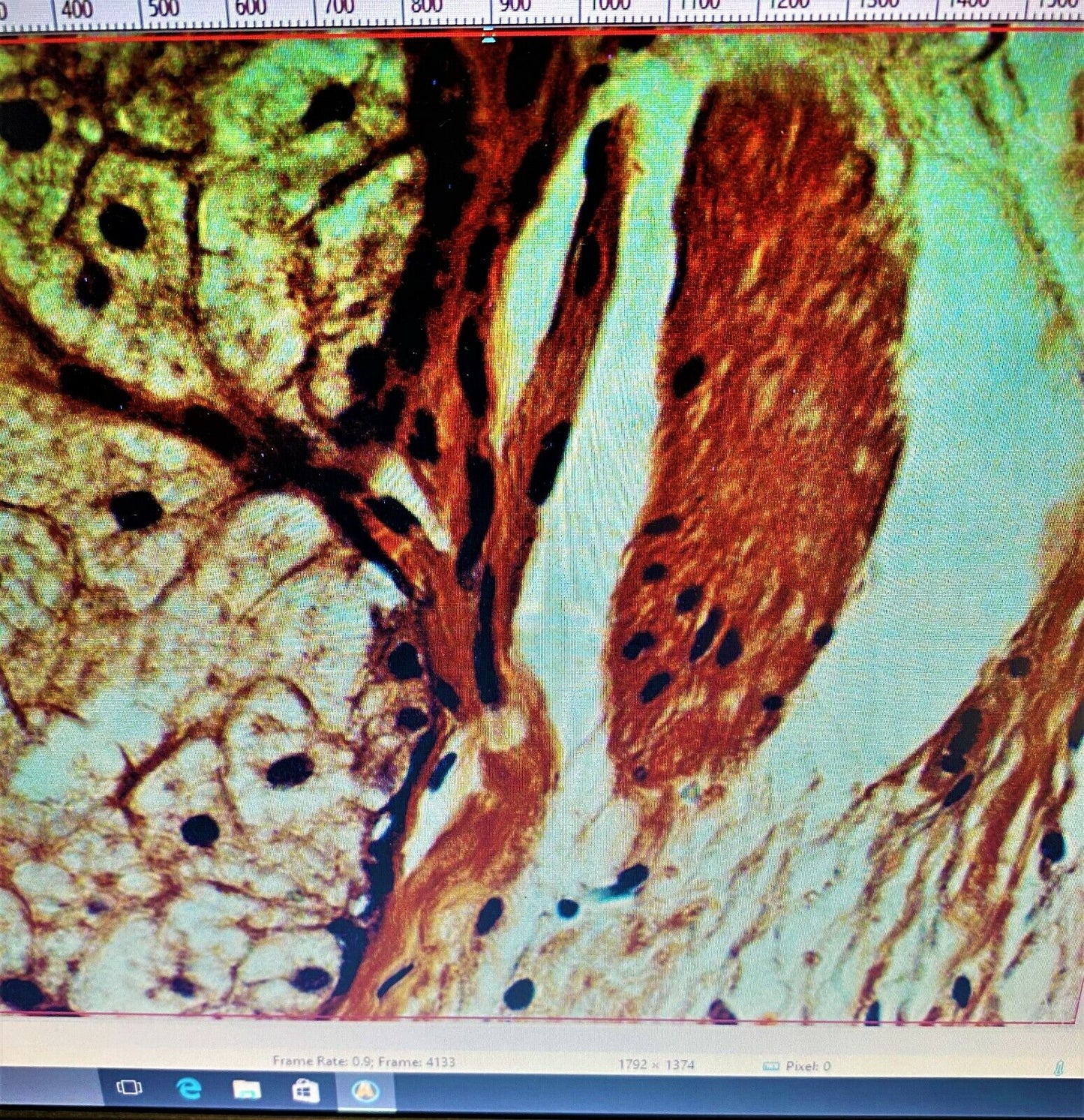

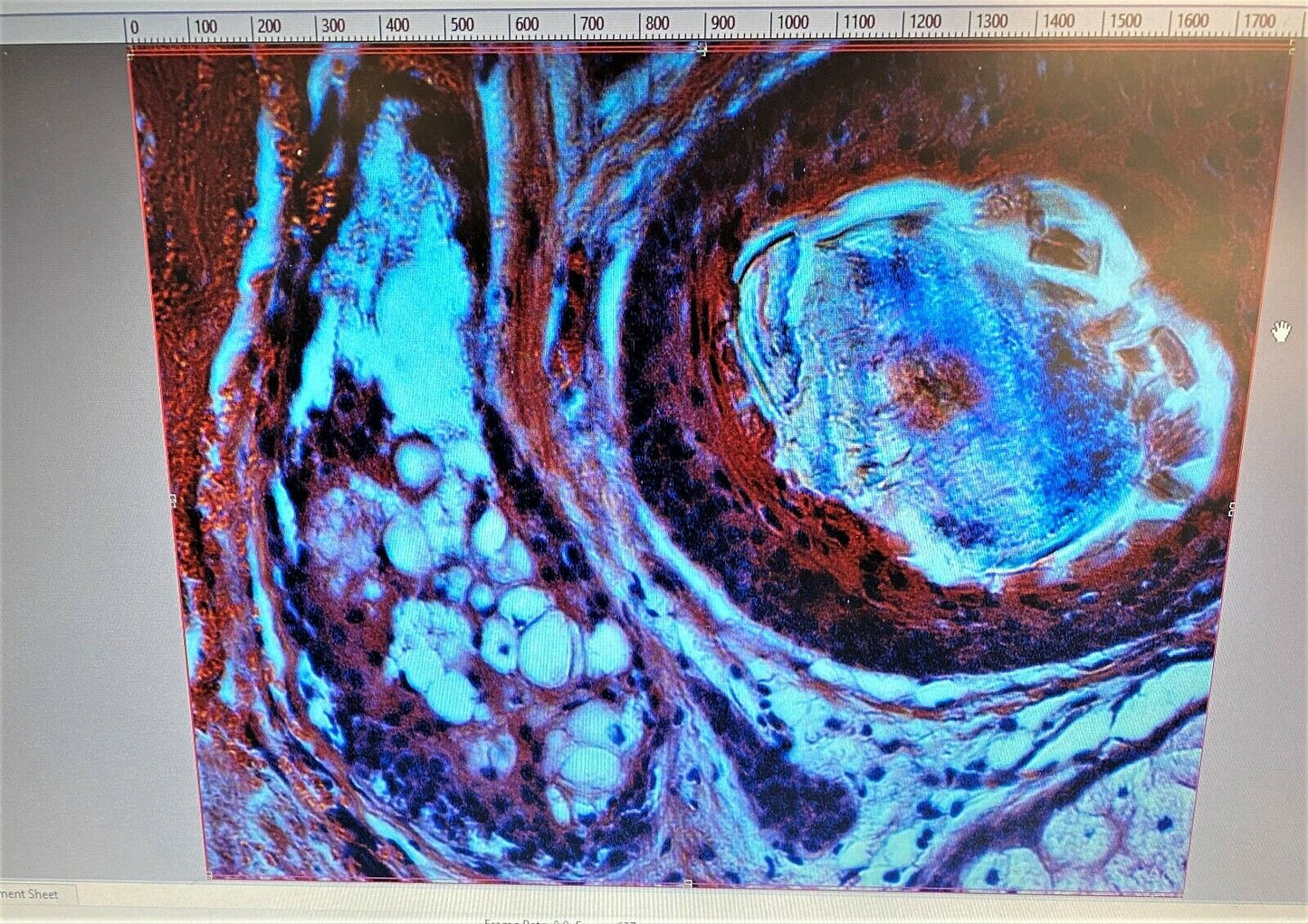

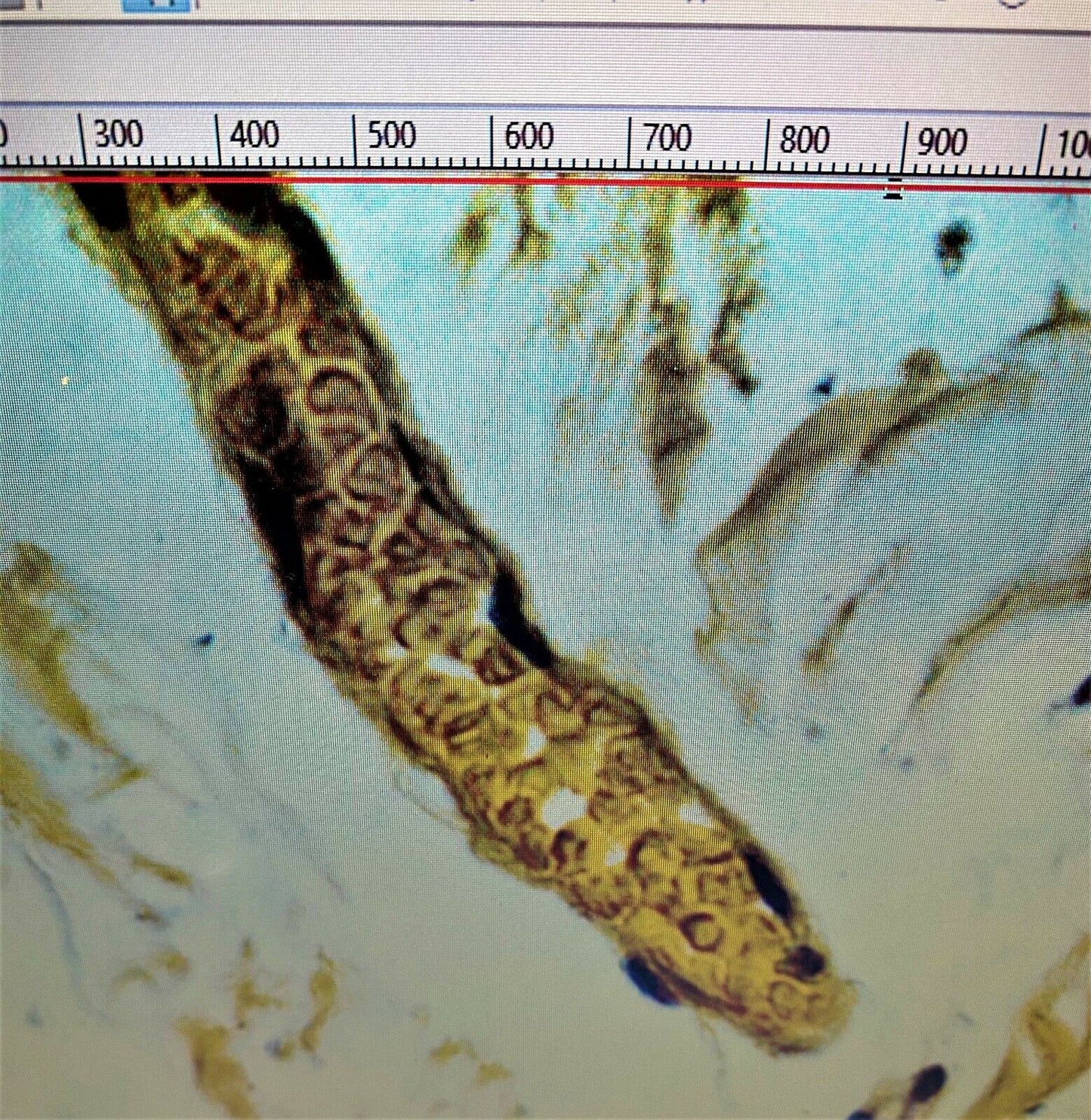

Screen shots are actual live imaging of stained skin samples in fluorescence and Nomarski DIC modes
DUNS 150240088 Cage 35GE8
Quotes available
