Olympus BX51 Microscope LWD Nomarski DIC BF/DF Semi/MET
Olympus BX51 Microscope LWD Nomarski DIC BF/DF Semi/MET
Regular price
$13,950.00 USD
Regular price
Sale price
$13,950.00 USD
Unit price
per
Couldn't load pickup availability

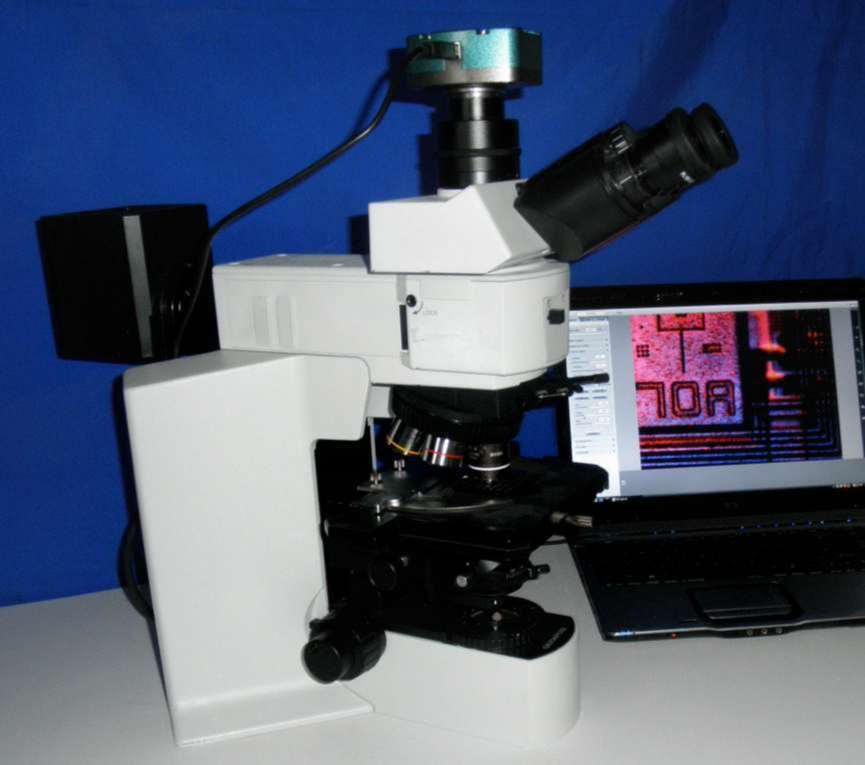

Olympus BX51 Universal Semiconductor Metallurgical Microscope with DIC Differential interference contrast ,Bright Field, Dark field DIC components.
M26 thread Long Working Distance Semi APO Bright Field/ Dark Field LWD Objectives
TR30-2 Trinocular observation head with WH10X 22 eyepieces. 1.0 X parfocal C mount camera adapter.
3" x 2" glass slide 3"x4" x y stage.
Universal Reflected and transmitted light stage. Capable of both transmitted and reflected light observations. 1.25 Abbe substage condenser

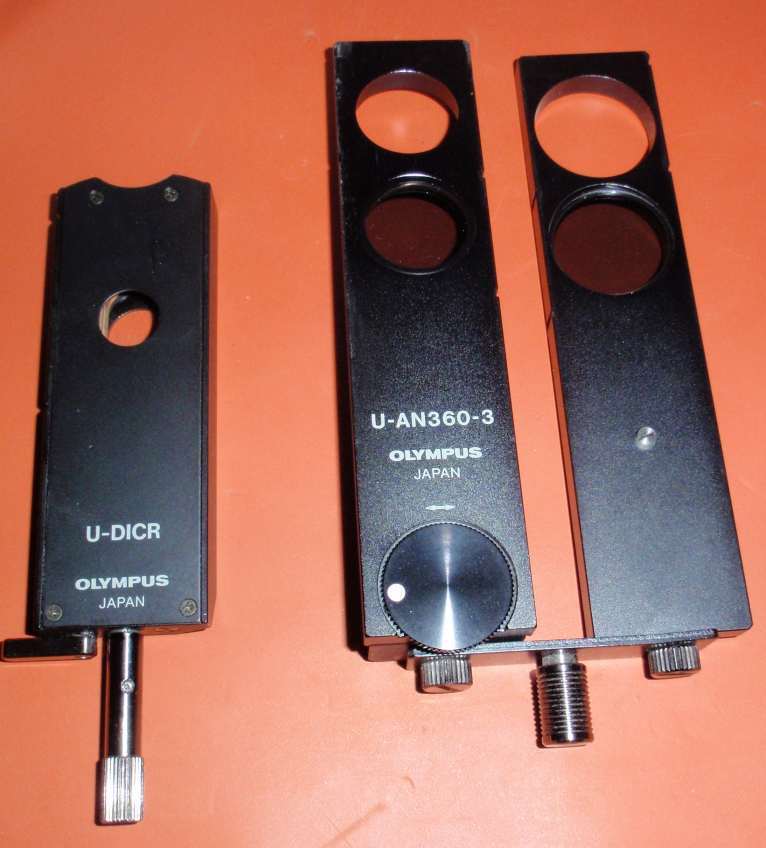

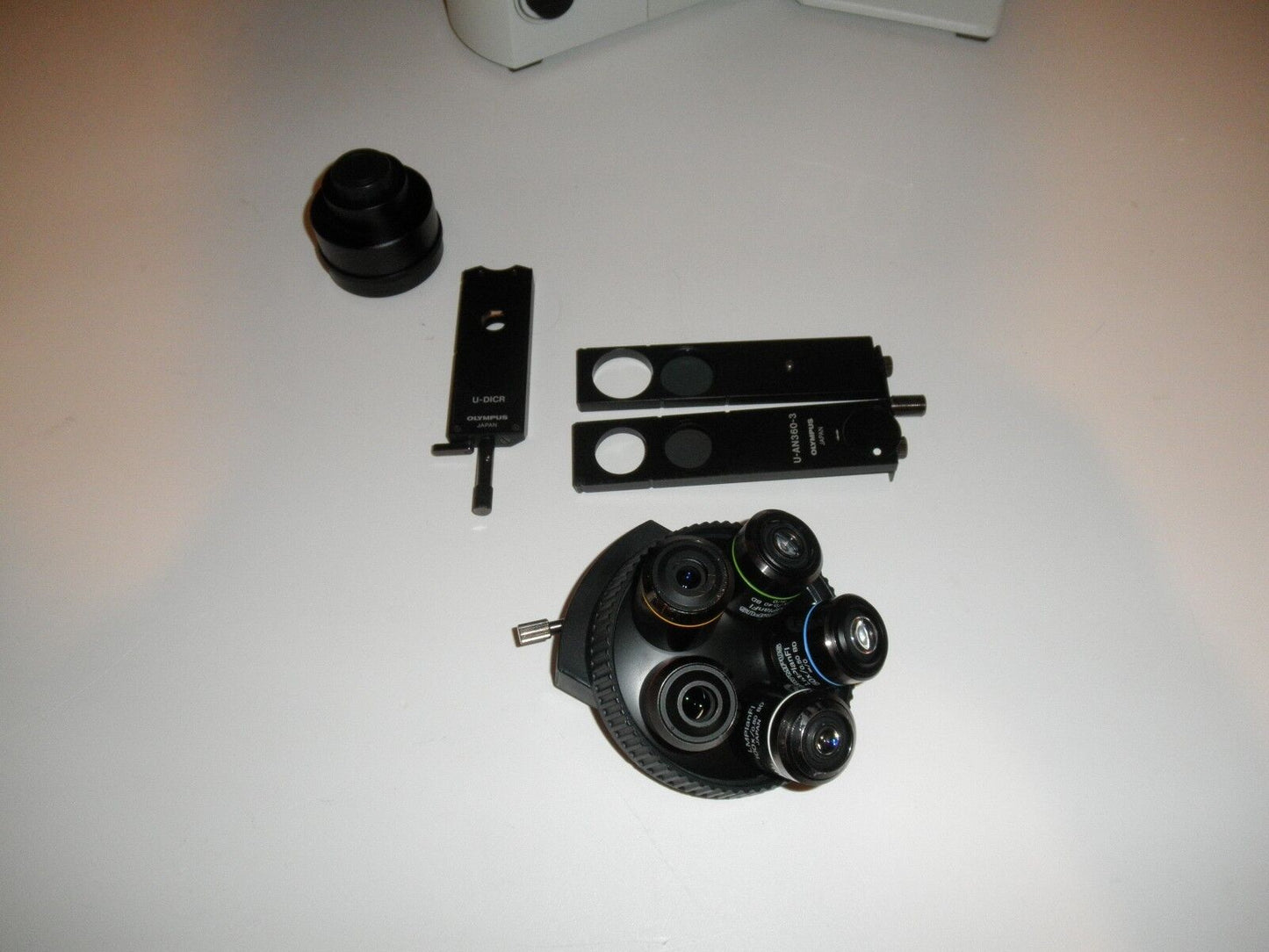

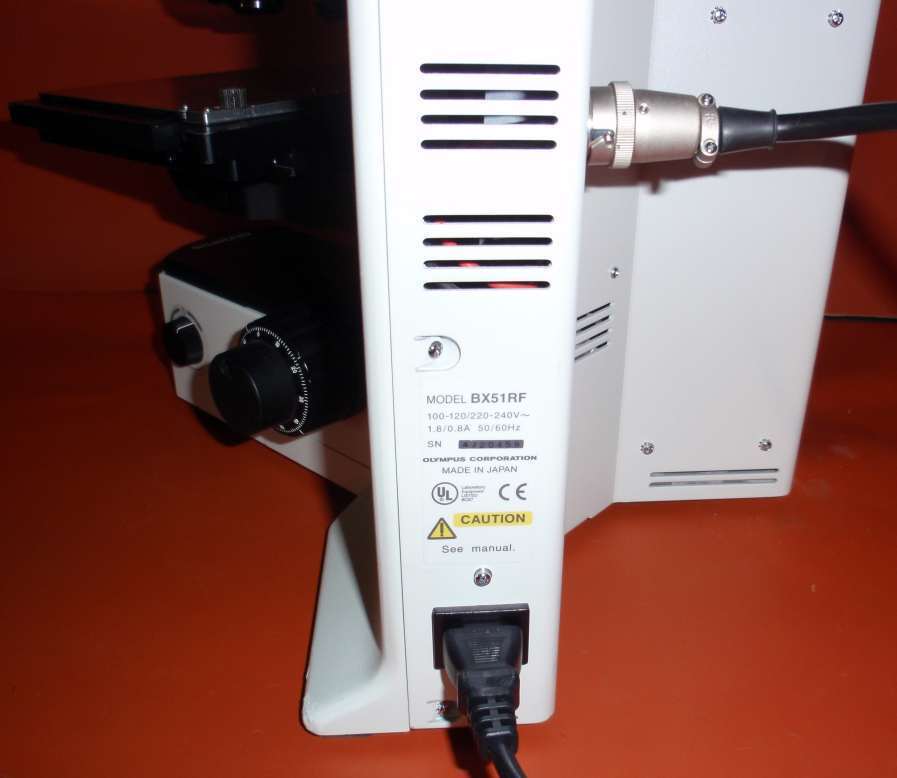

100 W internal power supply with 100W lamp housing. BF/DF epi adapter, UPO (Polarizer) ,UAN360-2 (360 degree analyzer) , and U-DICR tunable Nomarski prism.,

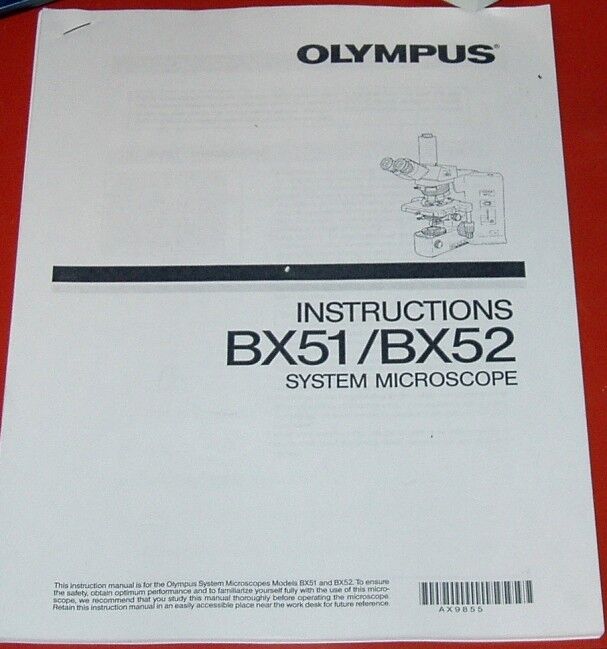

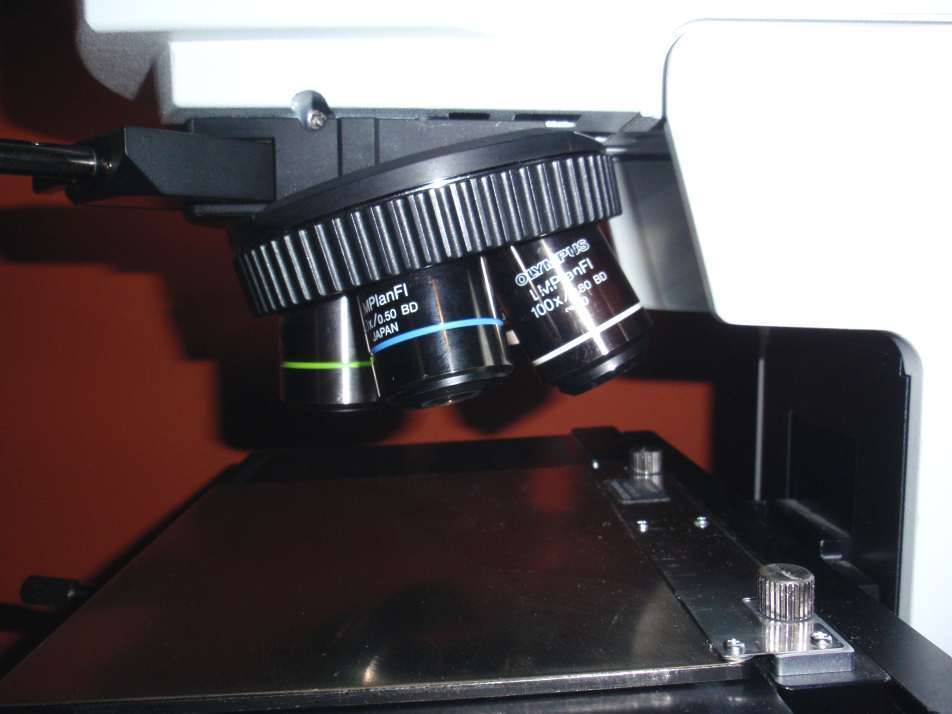

LMPLAN FL BF/DF Semi APO Plan objectives: 10X,20X,50X,100X LMPlan FL strain free DIC objectives. (3.0 mm W.D. at 1000X). Full manuals , Dust cover . Detailed price quotes available
30 Day Full Guarantee on all Optics, Electronics, and mechanical Components
5 MP USB C mount CMOS camera system included. C mount trinocular adapter Software, Drivers, calibration

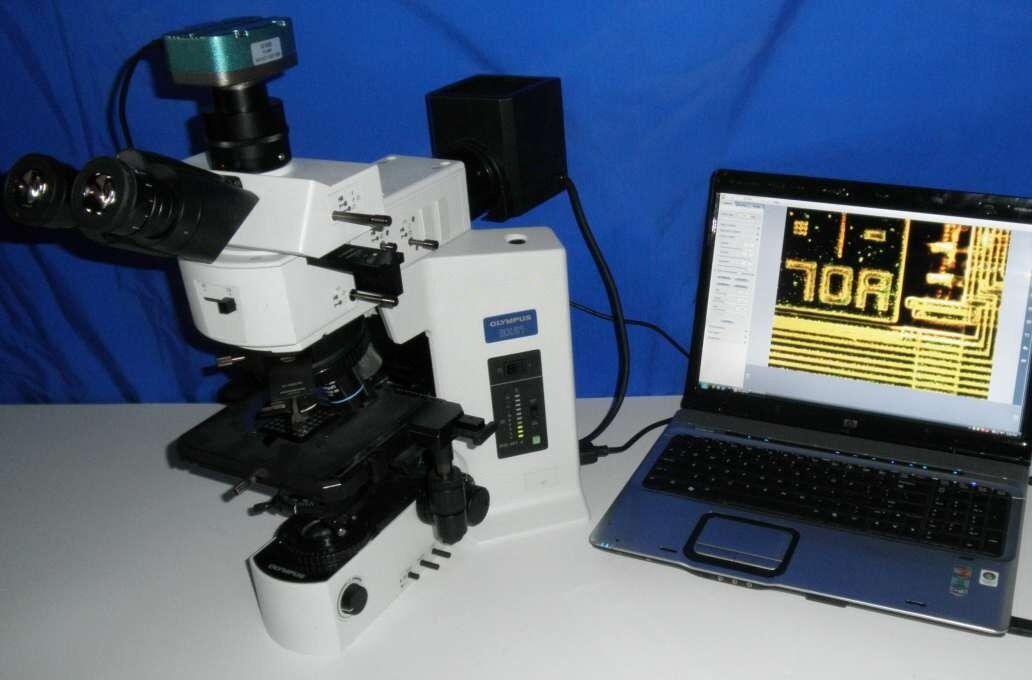

Laptop not Included (Shown in ad for demonstration purpose)

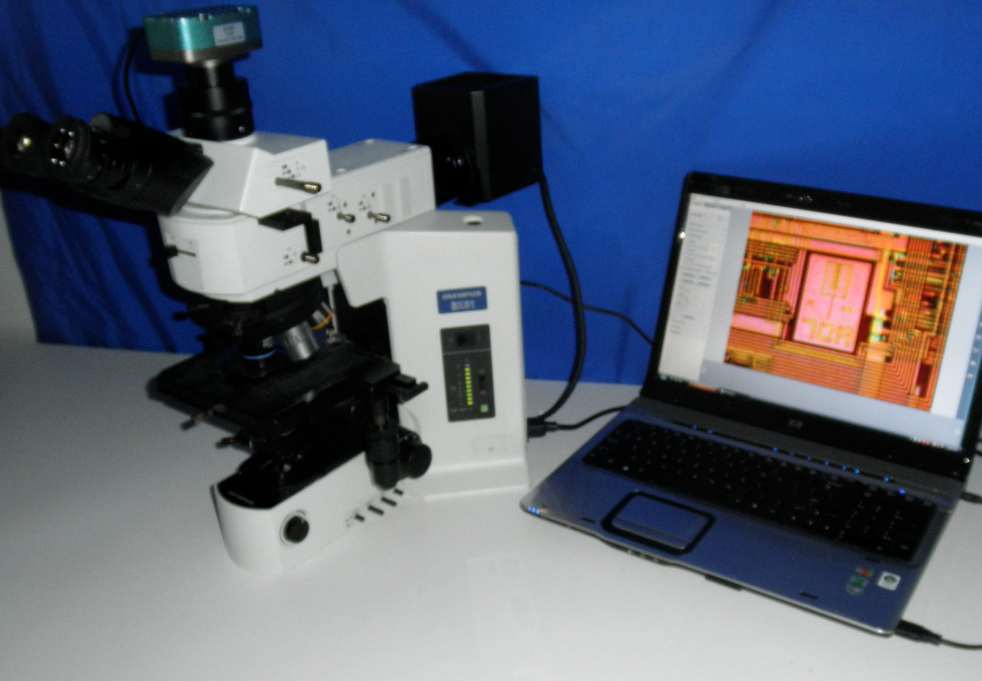

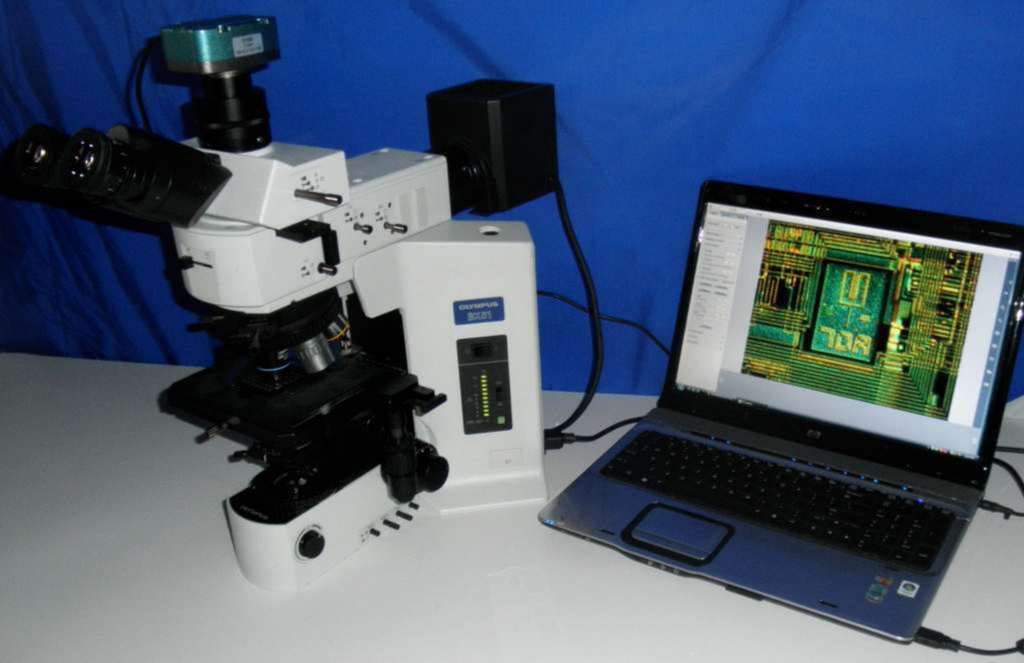

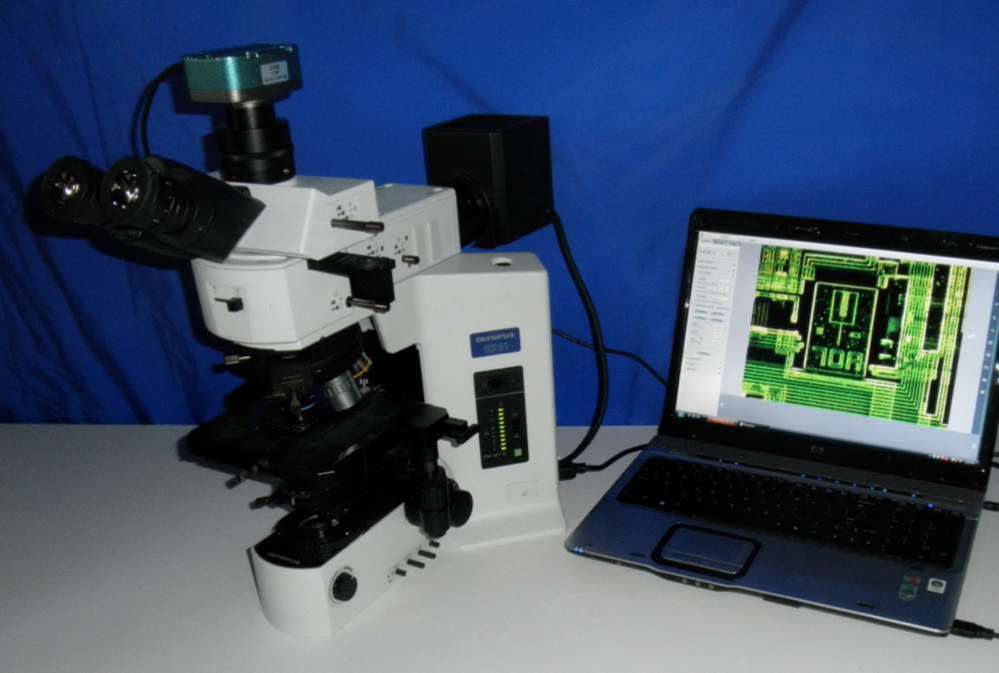

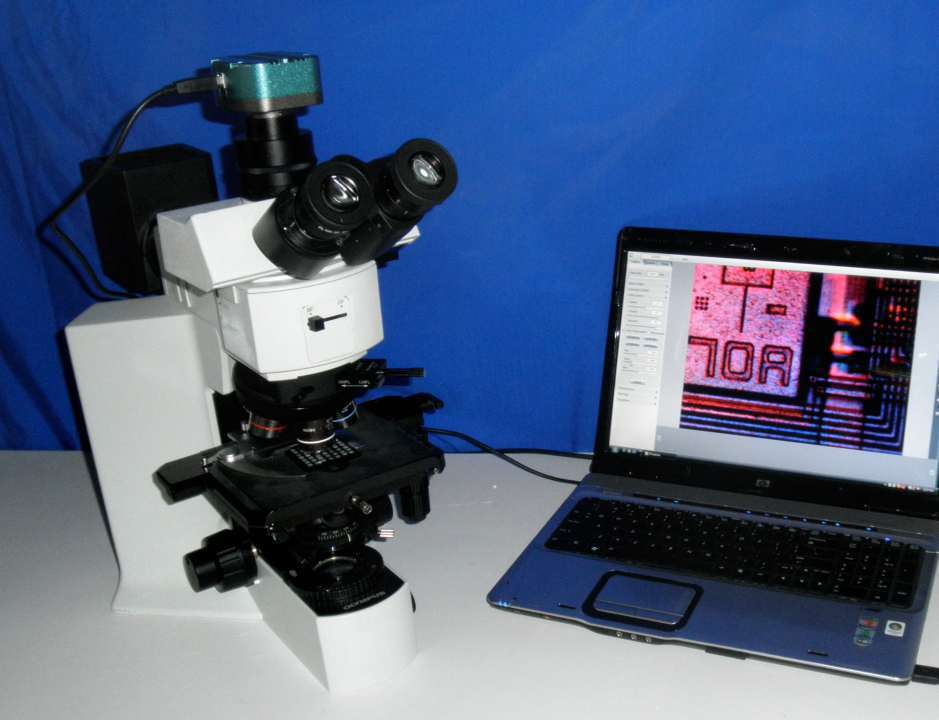

Screen shots are actual real time imaging of an AMD memory chip in DIC 2nd order DIC mode
Video is Olympus BX51 Nomarski DIC Demo
