Olympus

Olympus BH2 BHS Broadband LED Fluorescence Microscope with 5 MP camera

Olympus BH2 BHS Broadband LED Fluorescence Microscope with 5 MP camera

$5,350.00 USD
$5,350.00 USD
Sale Sold out

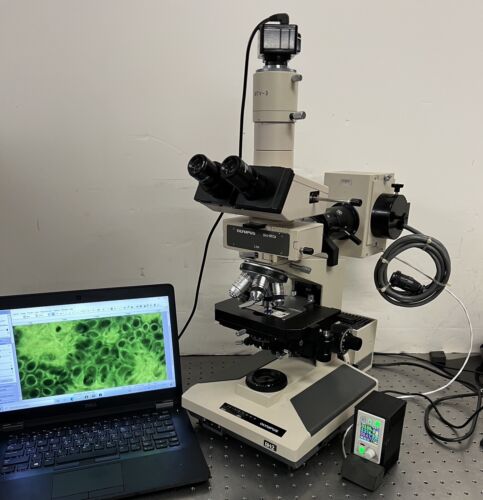

Olympus BH2 BHS Broadband LED Fluorescence  with Camera system
 Finite  160mm Tube Length Optical system
Broadband LED Fluorescence system with High Intensity Broadband LED

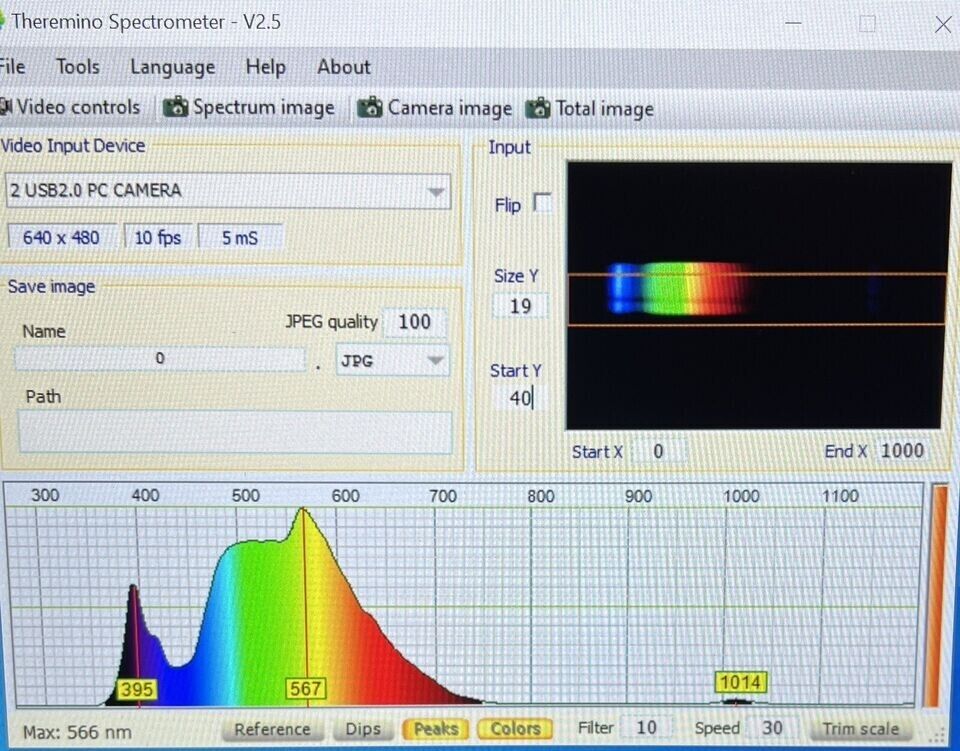

High intensity LED 400nm -590nm excitation range  3000 Lumen rated LED

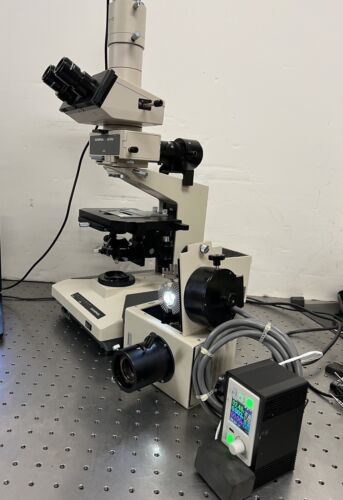

Direct Coupled LED system using original Olympus Lamp House, Alignment, and collimating Optics
Direct coupled system doesn't require fiber optic cables, adapters, or have fiber optic intensity loss
Digital Power supply with USB software , Blue Tooth , and manual control

100 w  Tungsten Halogen transmitted  source.
 Plan Objectives 4X D Plan, 10x D Plan, 20x D Plan APO,  40x DPlan,100X D Plan 1.25N.A. Oil
160mm T.L. DIN standard Infinity
10X 20 Eyepieces.
Trinocular Observation head

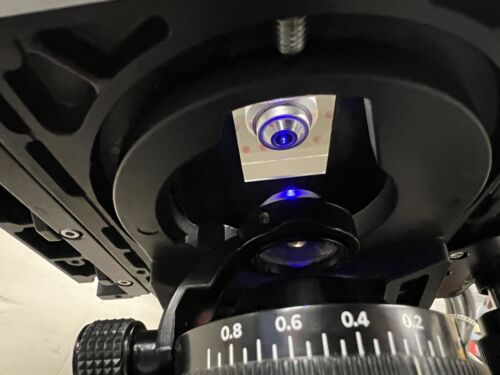

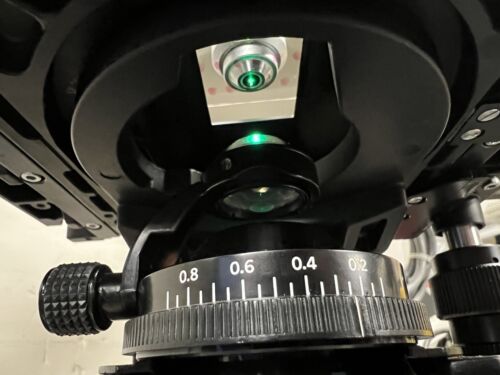

0.9  N.A. ABBE Condenser.

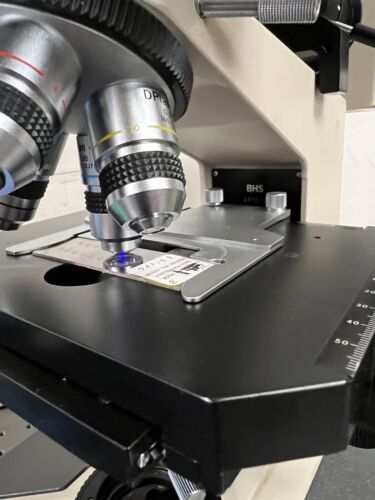

 3"x 4" x y stage with slide finger.

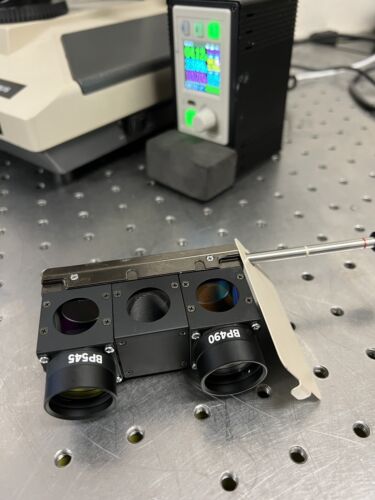

FITC and TRITC  B and G   (red and green emission) Olympus Fluorescence Cubes installed
5MP CMOS USB camera system Drivers and acquisition software.

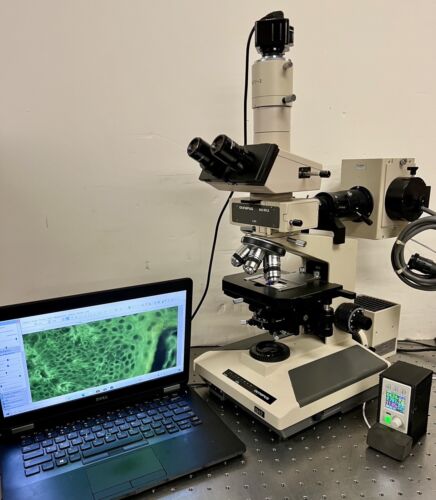

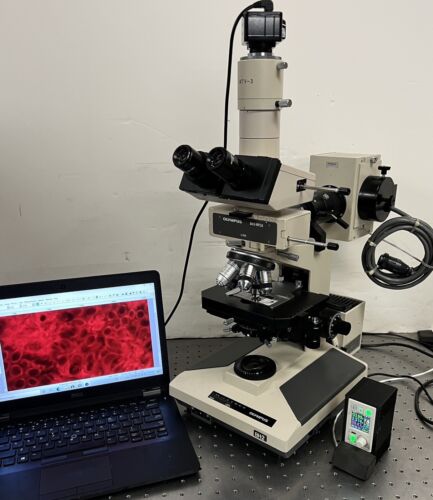

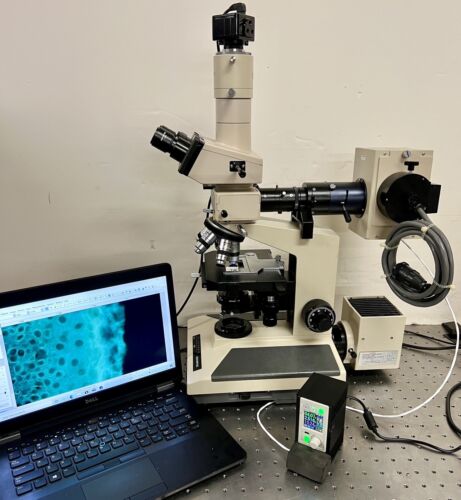

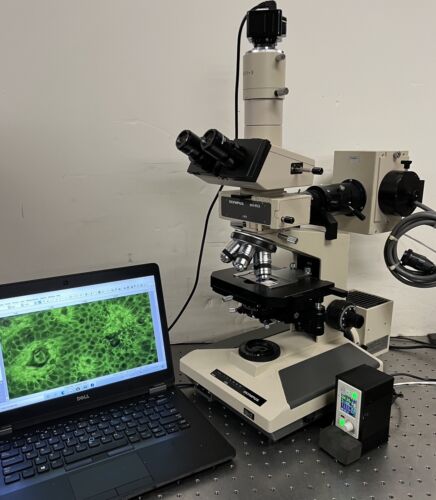

Laptop not included  (Shown in ad for demonstration purpose)

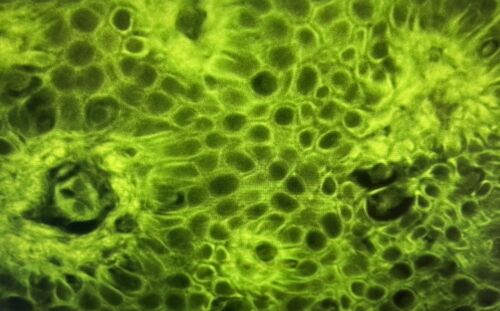

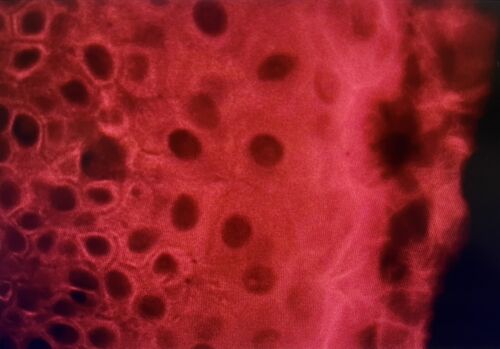

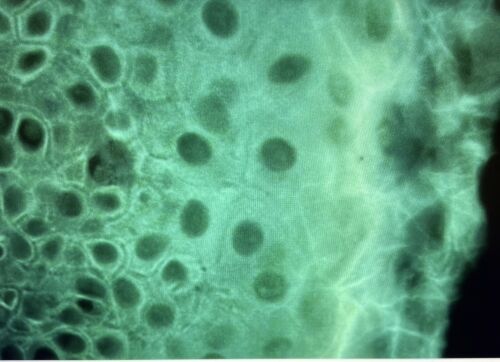

Images are real time screenshots of Skin cells at 100x,200x, and 400x  FITC,TRITC, and Bright Field modes.
  Images demonstrate optical clarity of the system
30 day warranty,
Includes manuals and dust cover
Broadband  LED Fluorescence systems available for most older microscopes
Bahns Enterprise Inc
