Olympus

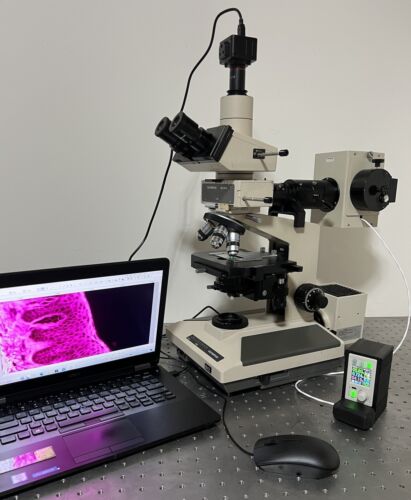

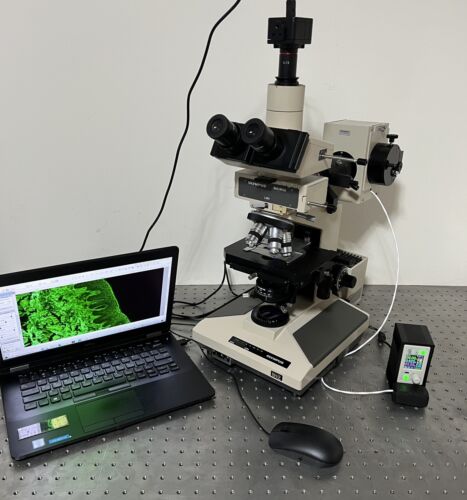

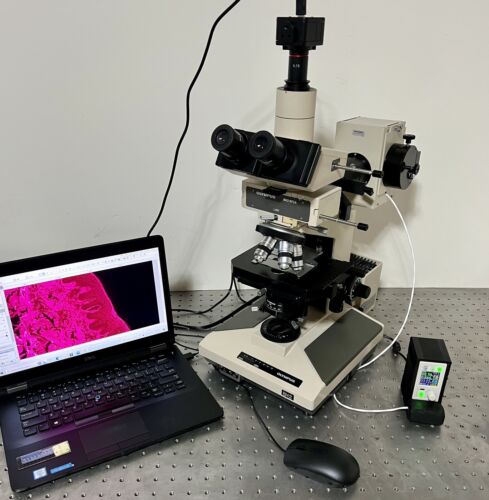

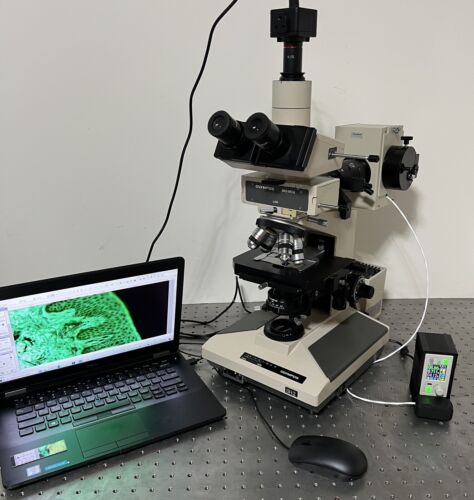

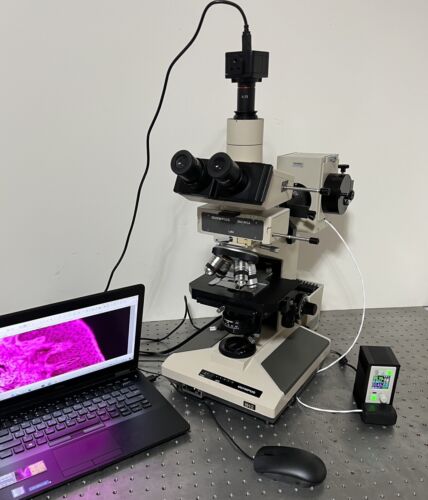

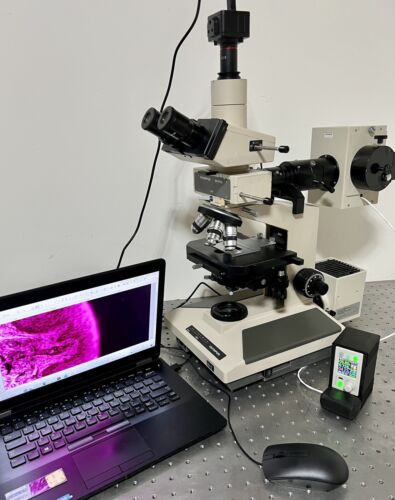

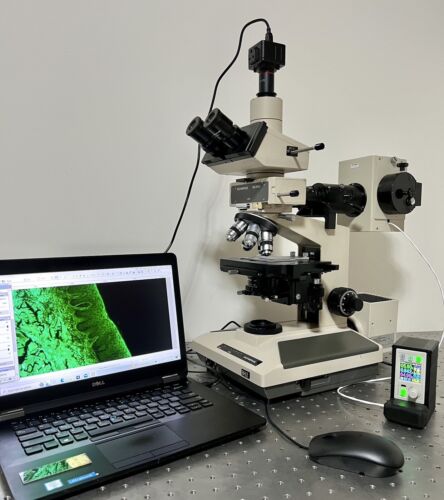

Olympus BH2 BHS Broadband LED Fluorescence Microscope with 5 MP camera

Olympus BH2 BHS Broadband LED Fluorescence Microscope with 5 MP camera

$5,750.00 USD
$5,750.00 USD
Sale Sold out
Olympus BH2 BHS Universal LED Fluorescence Phase Contrast  and Camera system
Universal LED Fluorescence system with High Intensity Broadband LED
High intensity LED 400nm -600nm  3000 Lumen LED (same intensity as HBO 100 arc Lamp)

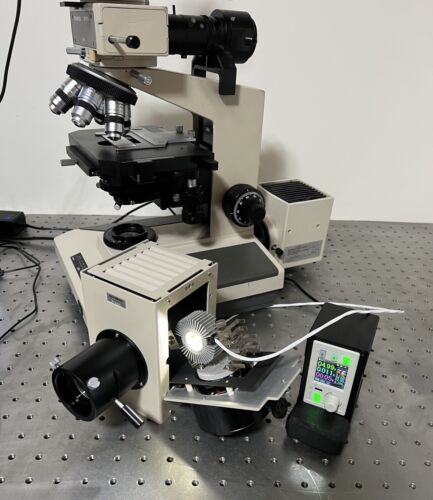

Broadband LED using original Lamp House alignment and collimating optics
 Direct Coupled LED system without Fiber optic cable intensity loss .

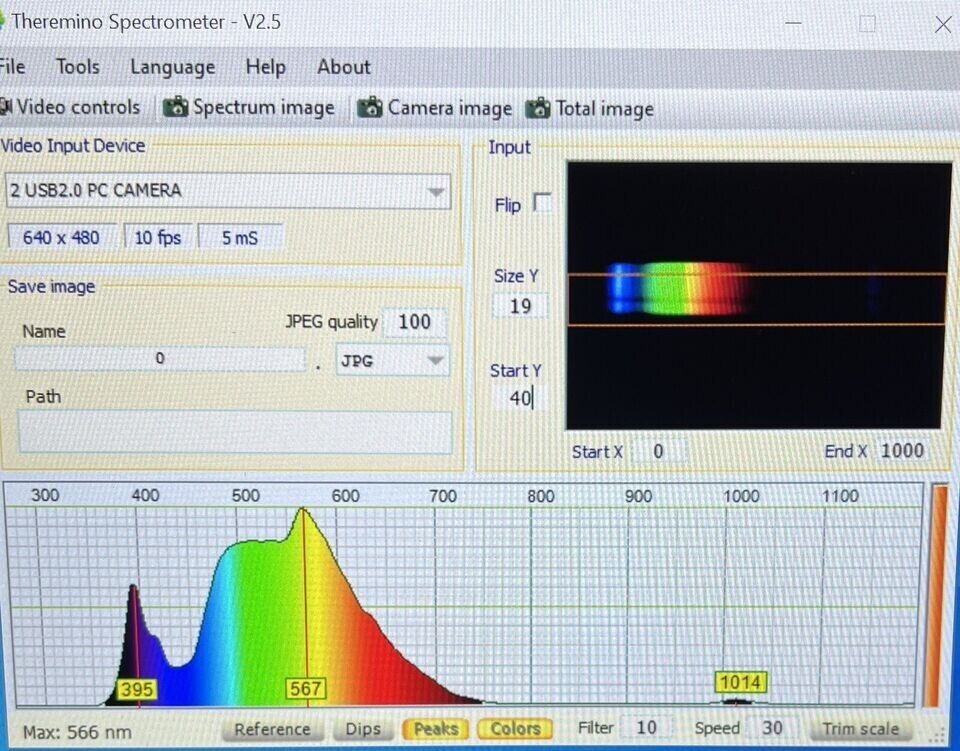

\Thermino screenshot is the LED excitation spectra
20,000 hour LED lifespan
Digital Power supply with USB software , Blue Tooth , and manual control
 Voltage limiting, current limiting, and power limiting
Original 100W HBO Lamp House with Collimator and x y adjustments
100 w  Tungsten Halogen transmitted  source.

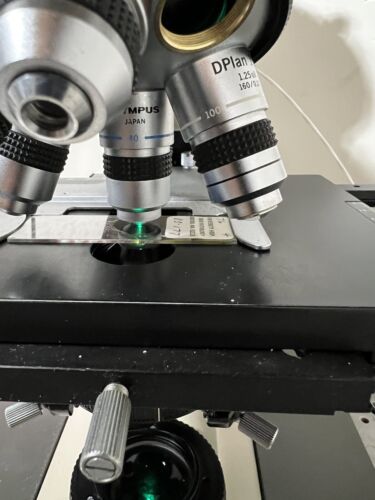

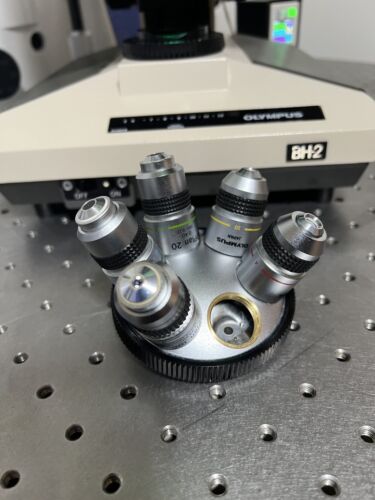

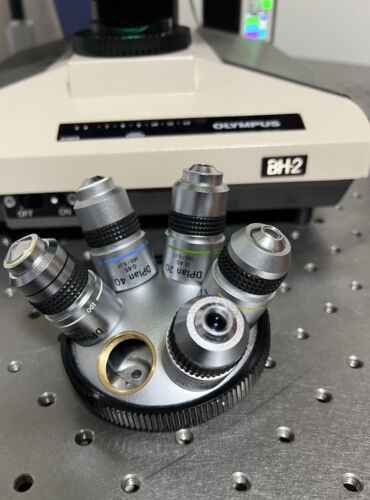

 Plan Objectives 4X D Plan, 10x D Plan, 20x D Plan ,  40x DPlan,100X D Plan 1.25N.A. Oil
Finite 160mm T.L. DIN standard
10X 20 Eyepieces.
Trinocular Observation head

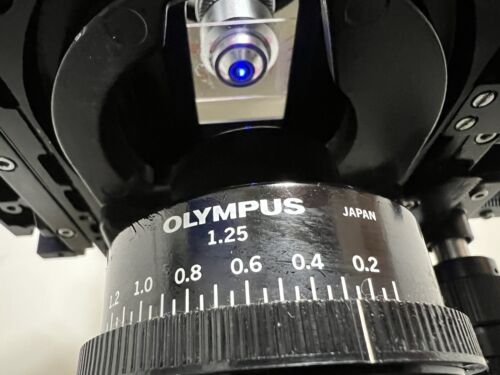

1.25NA ABBE   Condenser.
 3"x 4" x y stage with slide finger.

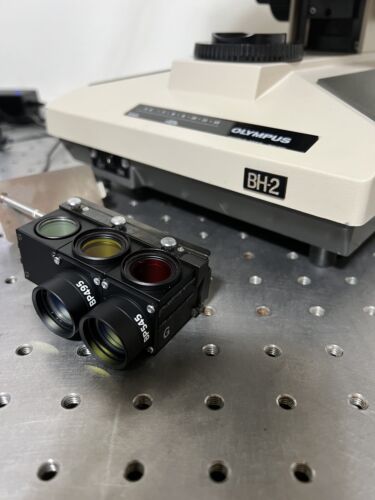

FITC and TRITC  B and G   (red and green emission) Olympus Fluorescence Cubes installed
5MP CMOS USB camera system Drivers and acquisition software.
Laptop not Included (shown in ad for demonstration purpose)

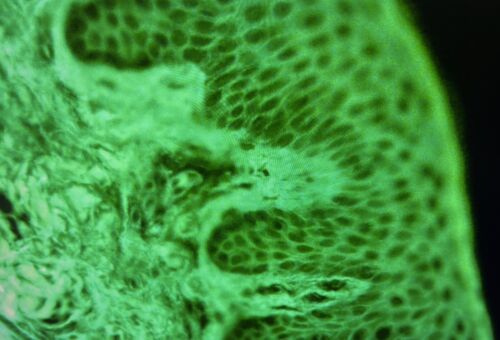

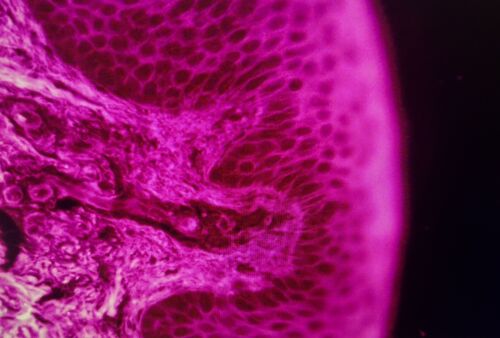

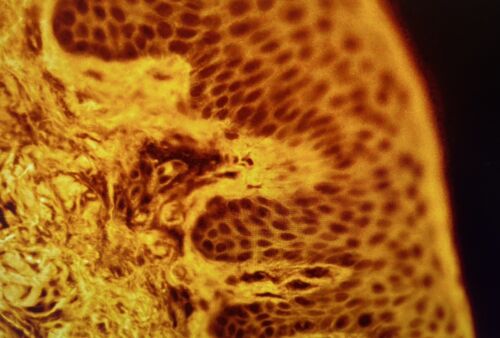

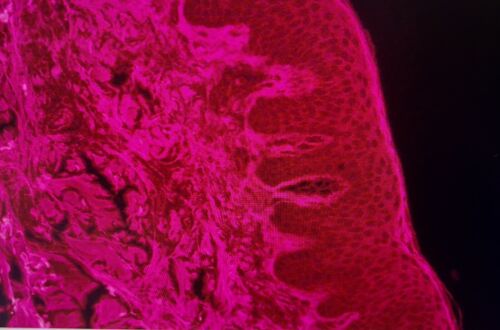

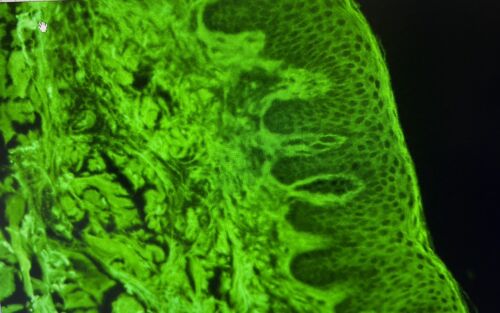

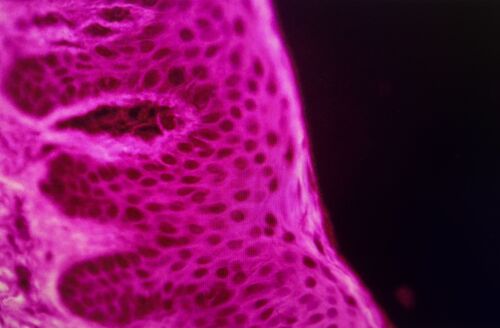

Images are real time screenshots of Skin cells at 100x,200x, and 400x  FITC,TRITC modes.
30 day warranty,
Includes manuals and dust cover
Universal LED Fluorescence systems available
