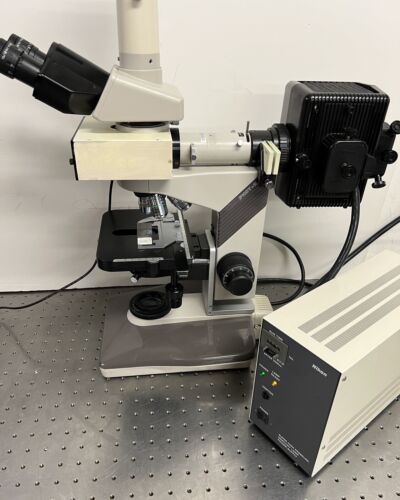

Nikon labophot 2 Water immersion Fluorescence Trinocular Microscope + 5MP cam
160mm T.L Finite system

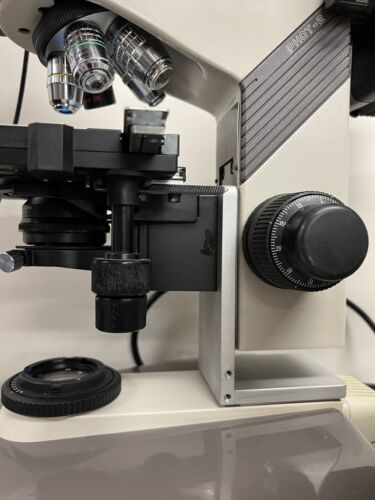

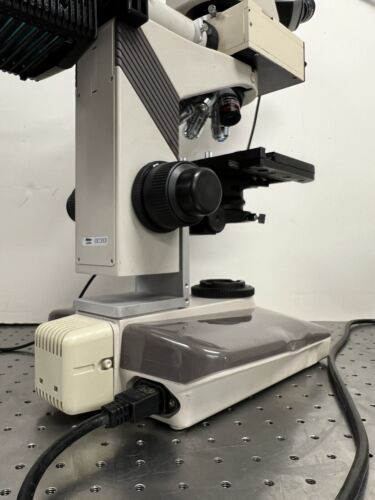

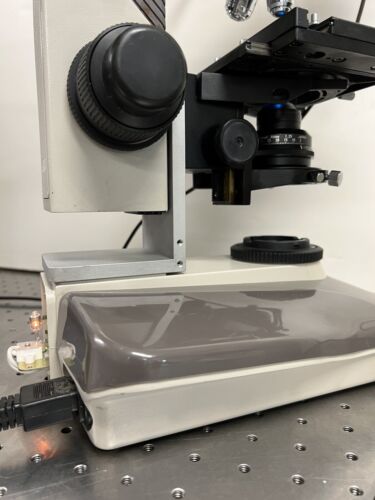

materials and Water Immersion frame has differs from standard frame by having fixed stage and top focus
Frame also has attachment points for electro physiology attachments
Electro physiology, IVF, and Live cell applications
current setup is with ELWD (Extra Long Working Distance) , WI objectives available in other listings

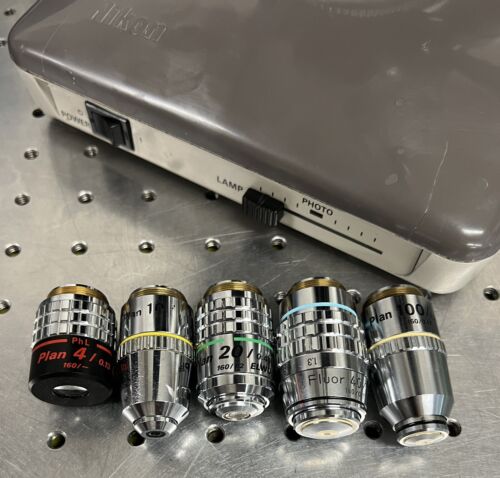

4x E Plan ,10x Plan , 20x Plan ELWD , 40x Plan Fluor collar 1.3N.A. oil, 100x Plan 1.25N.A. (oil) objectives 160mm T.L finite system

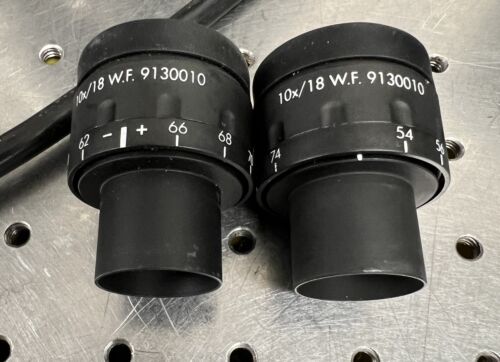

F trinocular Photo observation head with new 10X 18 eyepieces.
4 cube rotating Epi Fluorescence unit

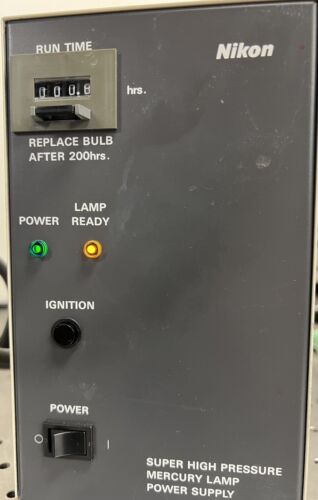

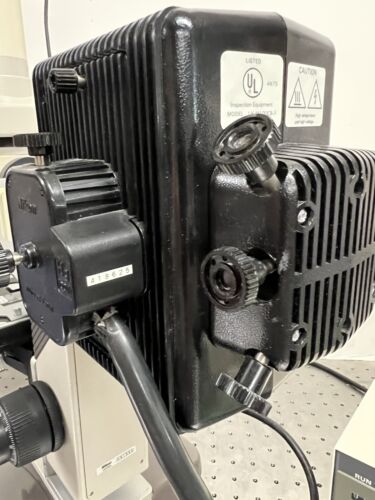

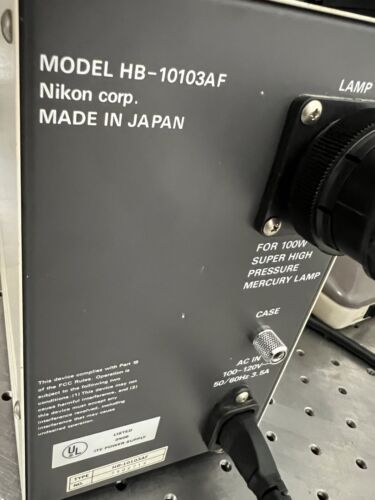

100W HBO arc lamp house with Nikon 100w Fluorescence power supply.

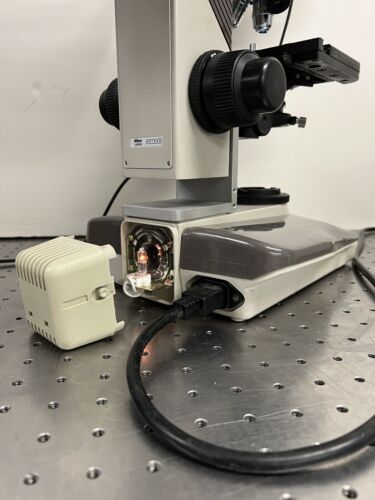

30W Transmitted base supply and lamp house
1.25 N.A. ABBE Condenser with new pinion gear
30W in base power supply

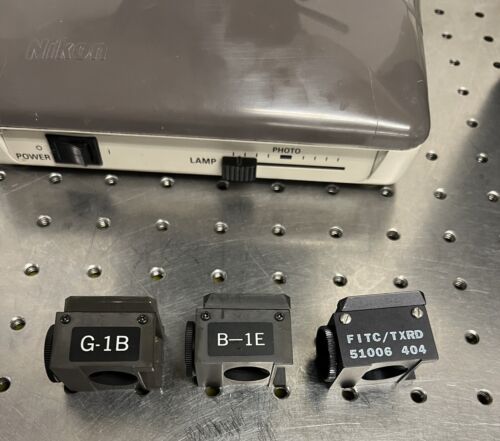

3 Cubes : B2A, G , DM400 Fluorescence cubes installed (FITC,TRITC,DAPI) 18mm filter size
Includes 5MP Sony CMOS USB camera , software and drivers
Laptop not included (shown in ad for demonstration purpose)
Complete Clean optics, Clean frame , fully tested with Guarantee

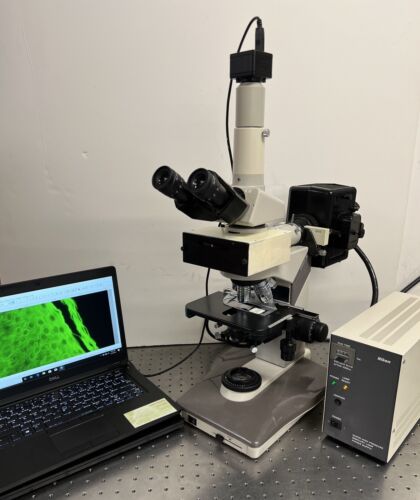

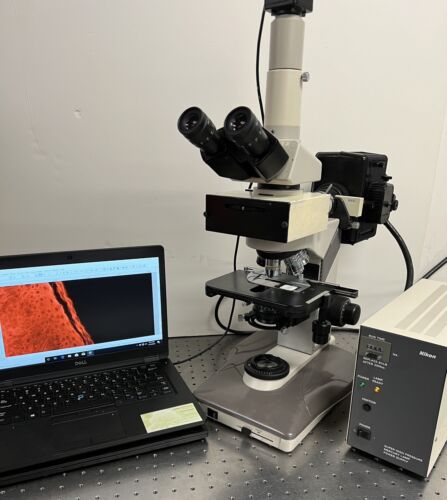

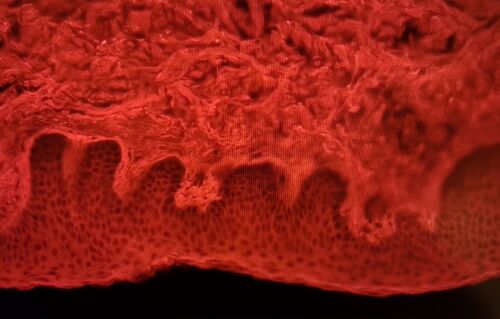

Screen shots are Fluorescence imaging of a stained skin sample at 100x, 200x FITC cube, TRITC Cube , and Bright Field
Full Manuals
Quotes, Parts, and service available
