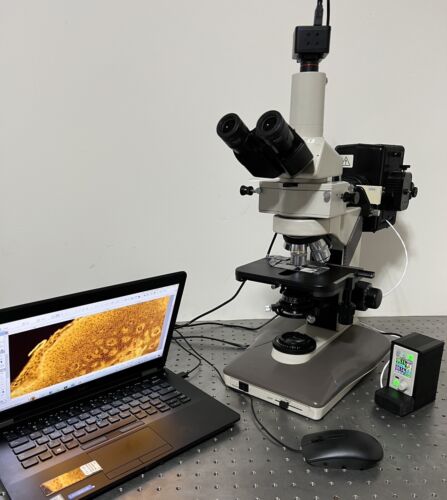

Nikon Labophot 2 Fluorescence Microscope LED Broadband +5MP Camera

Nikon Labophot 2  Broadband LED Fluorescence  Trinocular Microscope .Cam

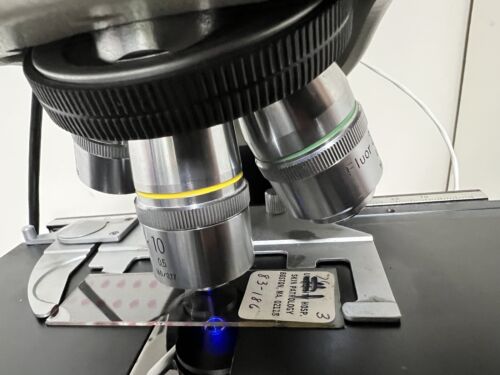

 10x Plan Fluor, 20x plan Fluor , 40x Plan ACH, 100x Plan (oil) Finite DIN 160mm T.L objectives

 160mm T.L. Finite RMS  thread objectives

 F trinocular Photo observation head with new 10X 18  eyepieces.

 Epi Fluorescence unit  with FITC and TRITC cubes (2 cubes)

 Broadband High Power LED  400nm to  600nm   (FITC,TRITC) HBO 100  LED replacement Fixture  with  LED power supply

 3000 Lumen rated (same as HBO 100 lamps)

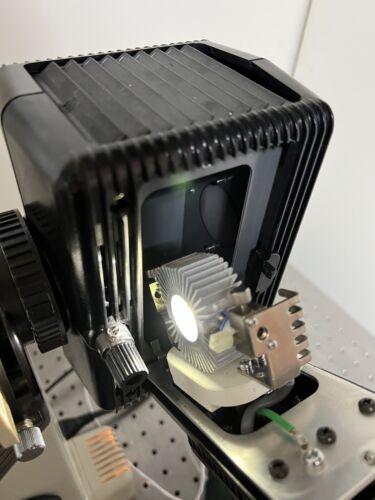

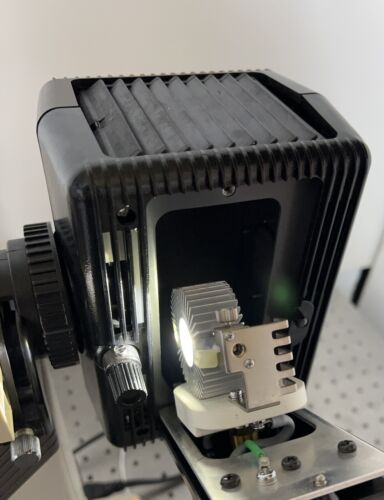

Direct Coupled LED uses original Nikon Lamp House, alignment , and collimating optics

Low cost Fluorescence system that doesn't require Fiber Optics, Mercury  HBO Lamps, Couplers, Metal Halide Lamps

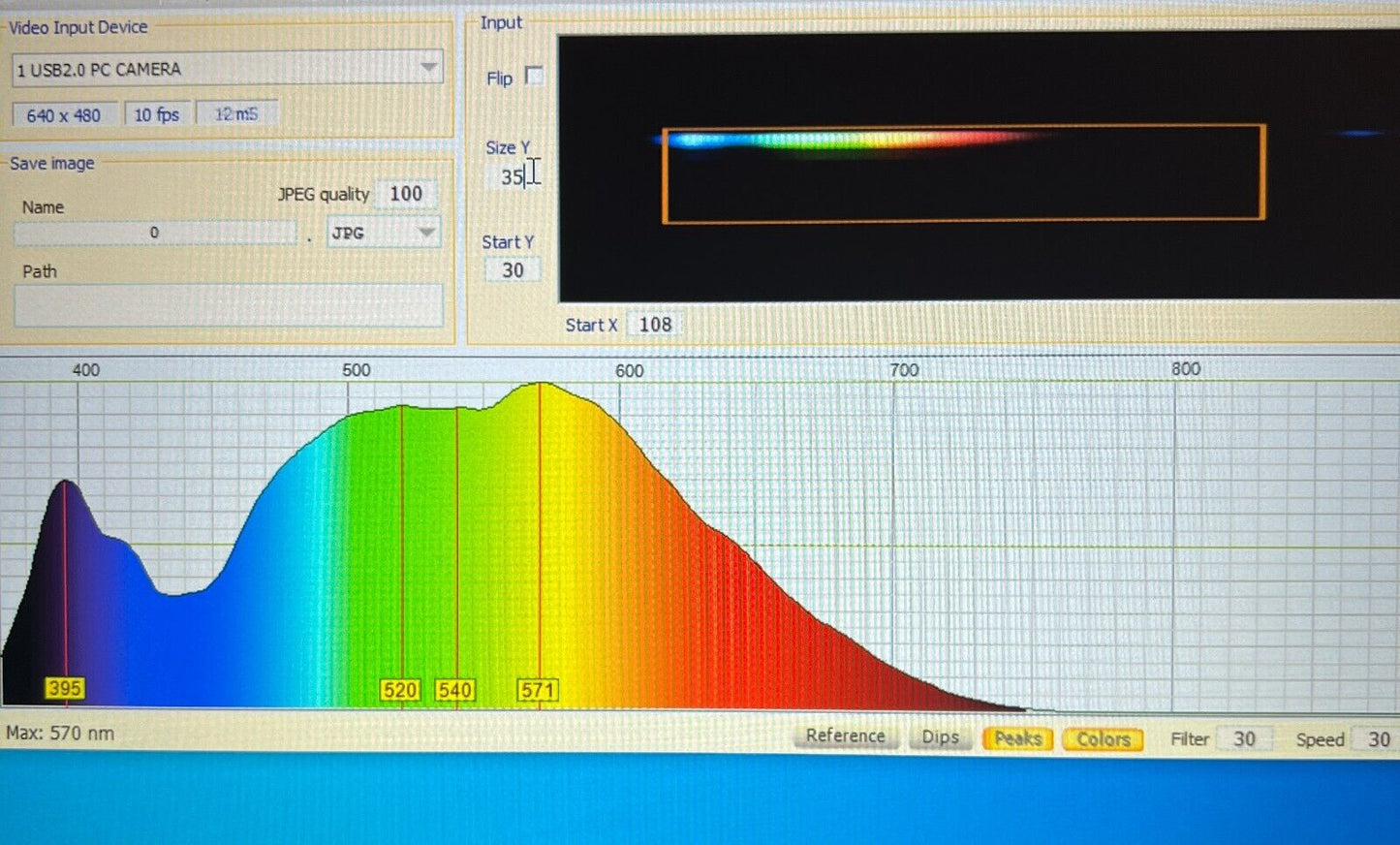

Thermino screenshot is the LED output spectra.

LED Power supply with digital control and  manual

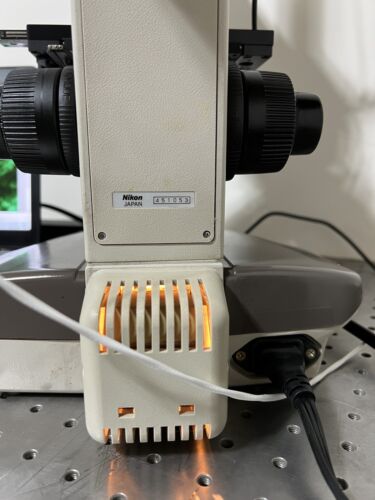

20W Transmitted base supply and lamp house

  0.9  N.A. ABBE  Achro Condenser,  20W in base power supply

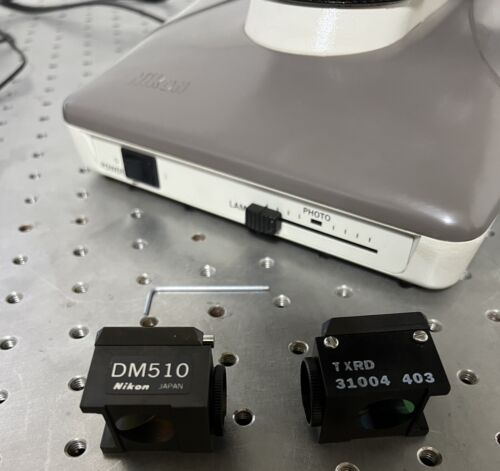

B2A, and  TRITC Fluorescence cubes installed (FITC,TRITC)  18mm filter size

Includes 5MP Sony  CMOS USB camera , software , adapter, and drivers

Laptop not included (shown in ad for Demonstration purpose)

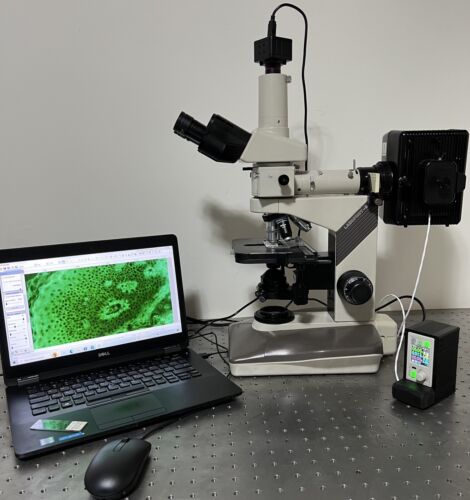

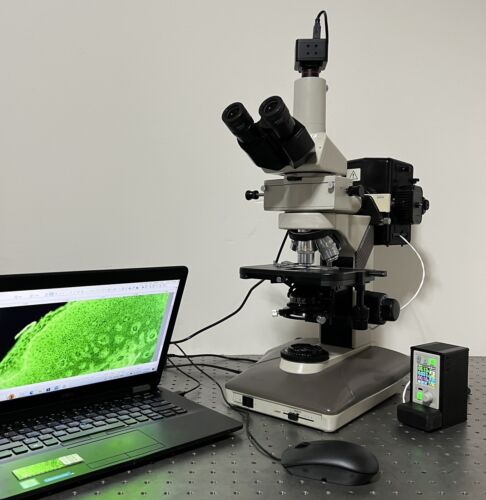

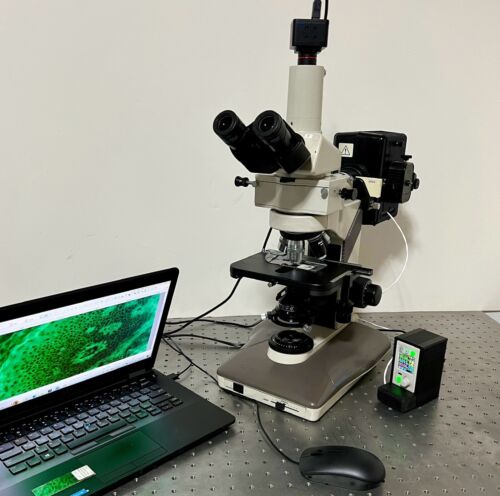

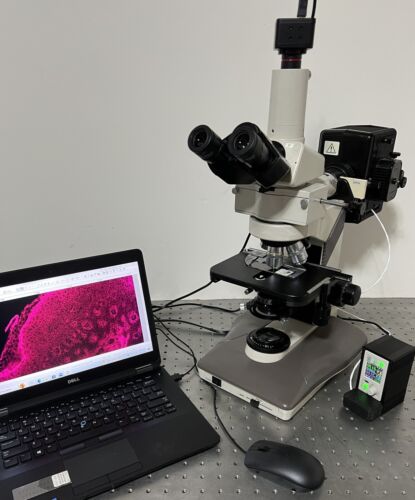

Complete Fluorescence ready to use system as shown

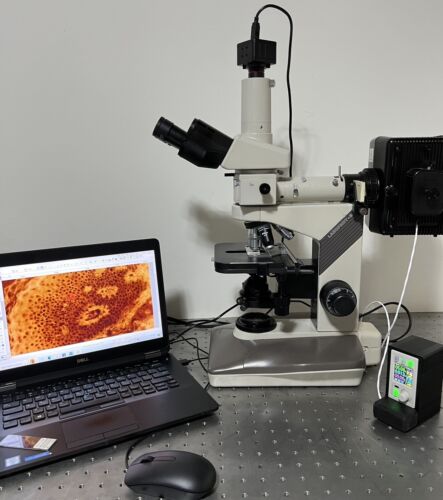

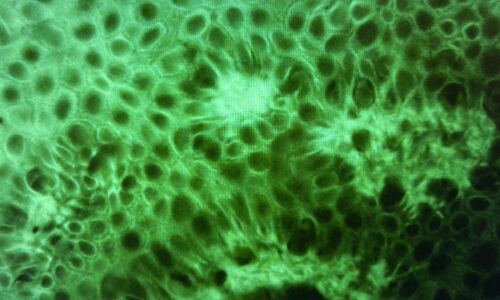

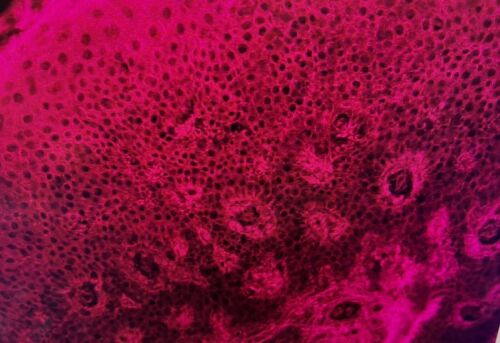

Screen shot is actual live Fluorescence imaging of a stained skin sample at 100x, 200x ,400x  FITC cube, TRITC Cube , and Bright Field

Full Guarantee

Full Manuals

Broadband LED Retrofit Fluorescence upgrades available for all Leitz, Leica, Zeiss, Nikon, and Olympus Fluorescence arc lamp  houses

Bahns Enterprise Inc
