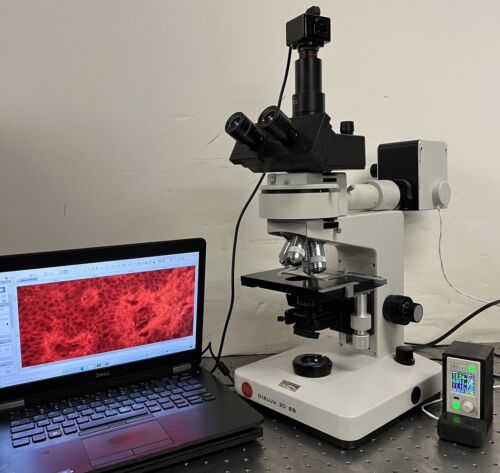

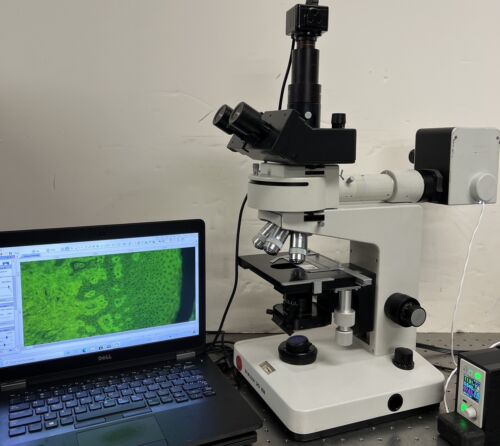

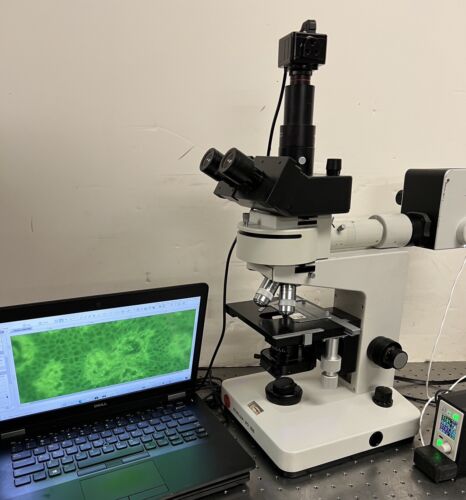

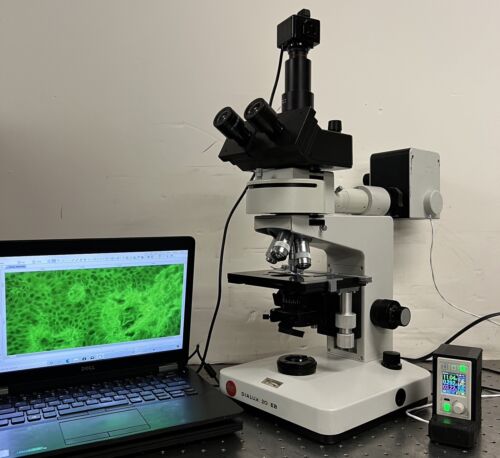

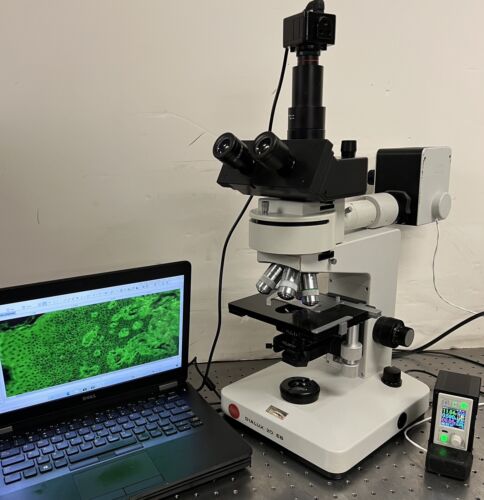

Leitz Leica Wetzlar Dialux 20 Fluorescence Broadband LED microscope with 5 MP Camera system Trinocular observation head with 3 position observation
Leitz Camera adapter
Broadband LED Fluorescence upgraded
High Power LED Broadband Fluorescence excitation source 400-590nm 3000 lumen rated

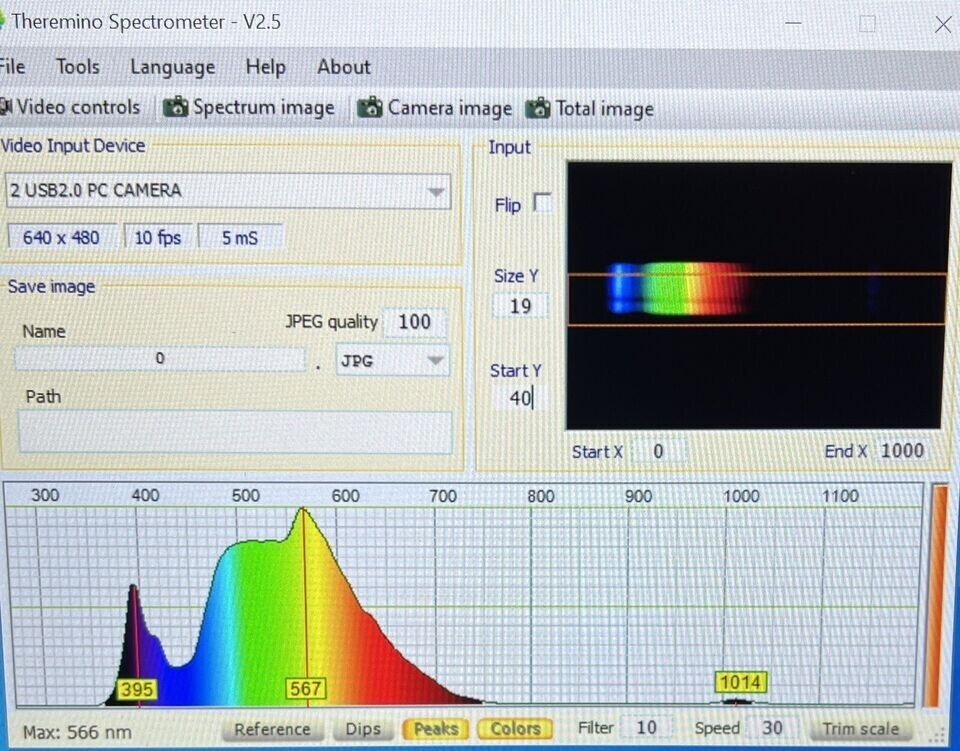

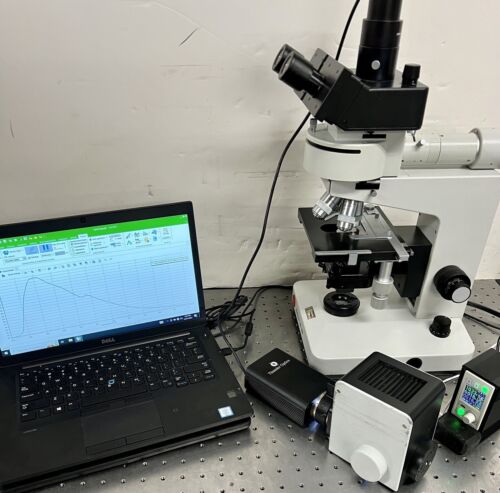

Screenshot with spectrometer is the LED Emission spectra

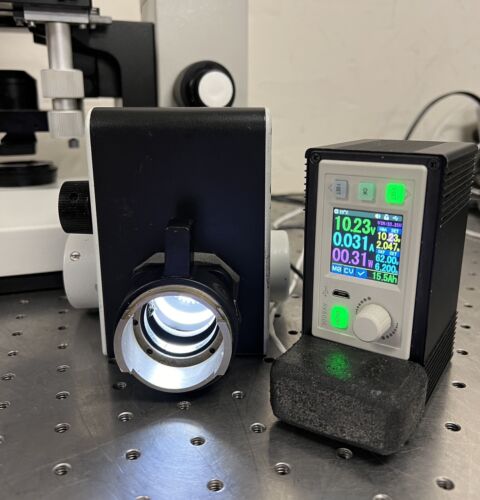

Digital LED Power supply with Lamp house mounted Fixture
Direct Coupled Broadband LED system is low cost alternative to Light engine and Metal Halide Fiber optic systems
No Fiber optics, No Mercury lamps, no expensive metal halide lamps and fiber optics, no ND filters required.
Uses original Leitz filter cube sets
Low cost 20,000 hour lifespan
Ploempac Fluorescence adapter with N2 and H2 Cubes (FITC,TRITC)

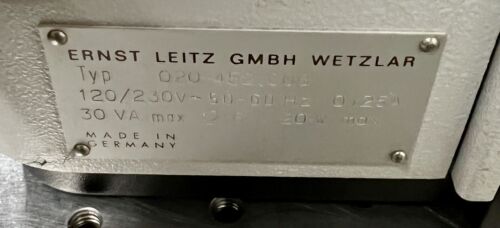

Leitz Wetzlar 20 frame with internal 20W transmitted

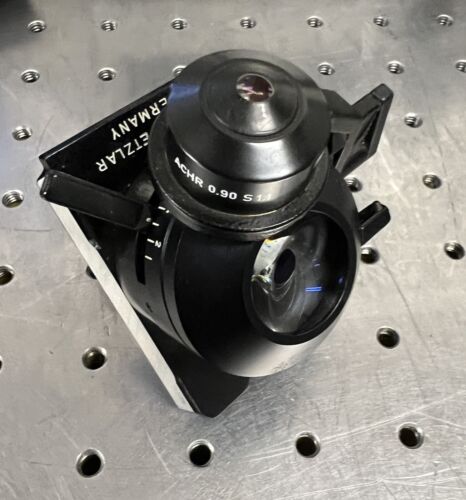

0.9 NA ABBE flip top substage condenser

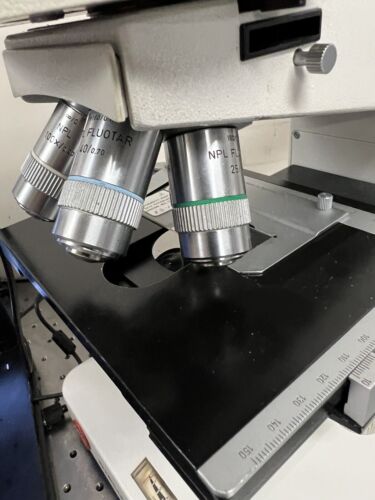

10x Fluotar (Leitz), 20x Leitz Fluotar , 40X Leitz NPL Fluotar , 100X (Leitz) Plan 1.25 N.A. objectives.
5MP Hayear YH500 Sony USB Camera system with Drivers , acquisition software.
Laptop not included (shown in ad for Demonstration purpose)
Leitz Dialux 20 manual
excellent condition
All mechanicals are good
All optics are clean and defect free
guarantee on all optics electronics and mechanical components.
Parts and service available
Images are real Time screenshots of Skin cell samples Fluorescence FITC, TRITC
excitation spectra of LED source
Thunder Optics Spectrometer is not included (Shown for LED Output spectra demo)
Customs Quantitative LED microscope systems are available separately.
